Zehnder Subway Stainless Steel Towel Radiator
Zehnder Subway Stainless Steel Towel Radiator

Is dual energy for you?

Zehnder and Bisque radiators can be fitted with dual energy heating options to continue to offer warmth and comfort throughout the home during summer months when the central heating system is not in use.

To make your radiator work in this manner, in addition to your towel rail you will need valves and an electric element with controls.

The element will be fitted on the ‘return’ side of vertical tubes on either side of the towel rail. This is the side the water flows out from, not into, the towel rail. If you need to identify this, please talk with your installer.

Depending on your chosen towel rail the valves may be able to be installed in the central connection points if your towel rail has these. This simplifies the installation as the element and valves are separated.

If your rail does not have central connections, it will need to be fitted with valves that can accommodate the element, like this:

or, via a ‘T’ piece which offsets the pipework like this:

Switch off the central heating

Vent the radiator to ensure there isn’t any air present

Close the flow valve (only)

Activate the immersion heater as required

De-activate the immersion heater

Open the flow valve

The immersion heater should be fitted on the ‘return’ side of the radiator.

Simultaneous use of the electrical element and the central heating should be avoided as this will shorten the life of the element and invalidate the warranty.

We recommend that all electrical work be undertaken in accordance with current I.E.E wiring regulations. If in doubt of zoning requirements, we recommend that a 30mA R.C.D is installed.

'Dual energy' units are designed to be used for occasional heating i.e. Summer when it is a cool evening, the main heating is off but you would like to heat the bathroom only. In this situation you would use the electric element for a few hours and turn off.

If you require electricity only, then an additional heating element is not suitable – please choose an electric towel rail.

Zehnder Subway Stainless Steel Towel Radiator

Regular price
£484.85
Sale price
£484.85
Include VAT Delivery Terms, options selected at checkout.

Delivery:
Stainless Steel - 5 -7 working days
Guarantee 10 Years
Heat output @ ΔT=50K
221 - 633 Watts
754 - 2160 Btu

SKU: SUBI-060-045
613x450 (SUBI-060-045) 27652149411940
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 613mm
Weight: 5.1kg
Delta 50 Watts: 221
Delta 50 BTU: 754
Postition: Vertical
1261x450 (SUBI-130-045) 27652149444708
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1261mm
Weight: 8.7kg
Delta 50 Watts: 370
Delta 50 BTU: 1262
Postition: Vertical
1261x600 (SUBI-130-060) 27652149477476
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1261mm
Weight: 10.4kg
Delta 50 Watts: 447
Delta 50 BTU: 1525
Postition: Vertical
1549x450 (SUBI-150-045) 27652149510244
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1549mm
Weight: 10.4kg
Delta 50 Watts: 445
Delta 50 BTU: 1518
Postition: Vertical
1549x600 (SUBI-150-060) 27652149543012
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1549mm
Weight: 12.4kg
Delta 50 Watts: 538
Delta 50 BTU: 1836
Postition: Vertical
1837x450 (SUBI-180-045) 37996603211968
Radiator Type: Dual Fuel
Immersion Rating:
Width:
Height:
Weight:
Delta 50 Watts:
Delta 50 BTU:
Postition:
1837x600 (SUBI-180-060) 27652149575780
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1837mm
Weight: 14.4kg
Delta 50 Watts: 633
Delta 50 BTU: 2160
Postition: Vertical

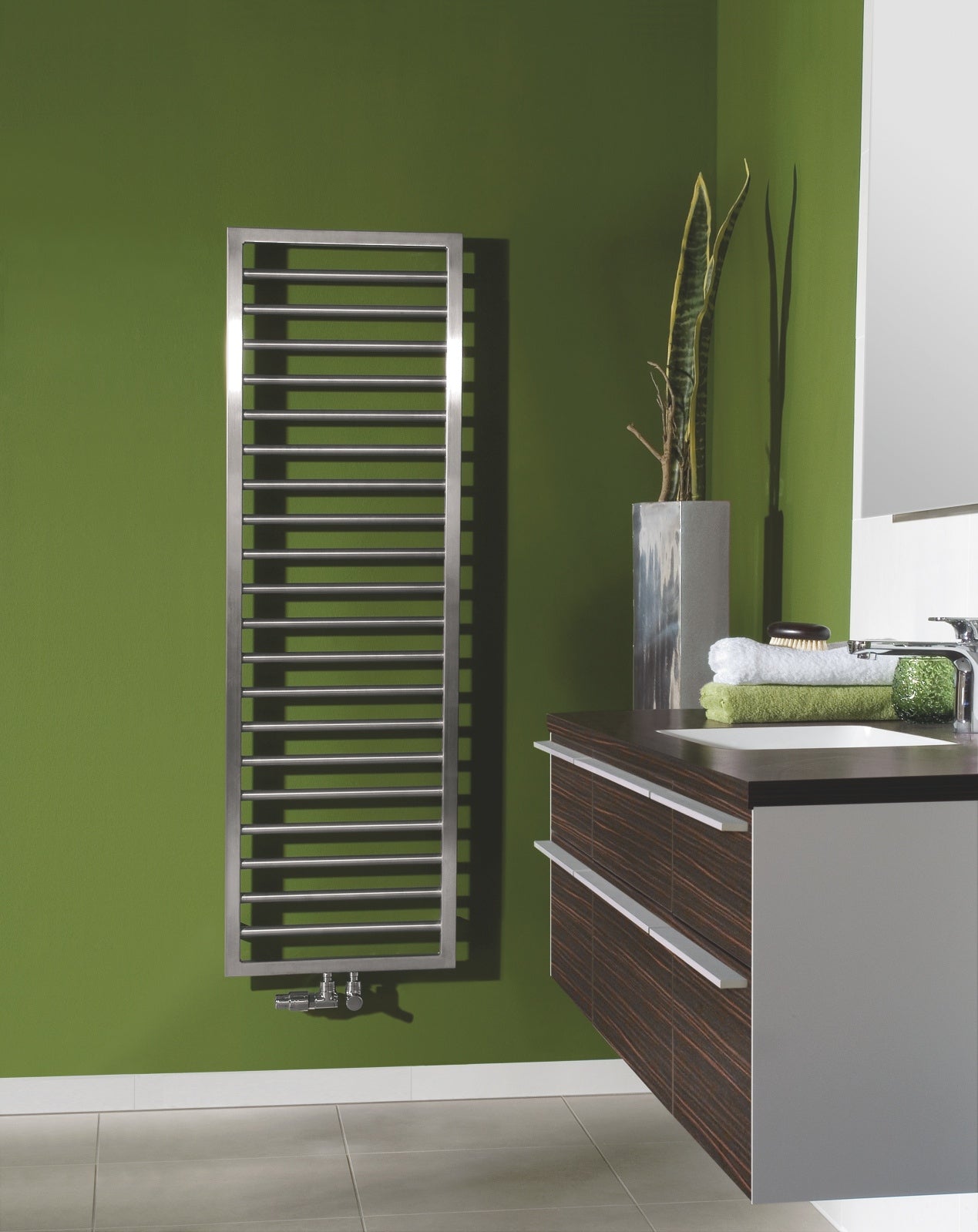

The Zehnder Subway classic lines gives this radiator broad appeal as it offers versatility, comfort and superb design. Dimensions range from 613mm x 450mm to 1837mm x 600mm.  An optional immersion heater allows the radiator to continue to offer warmth and comfort throughout the summer months when the central heating system is not in use.

Download PDF Spec
