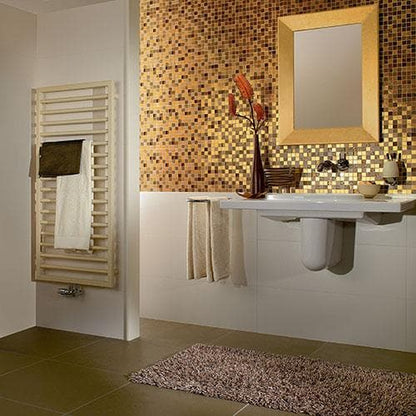

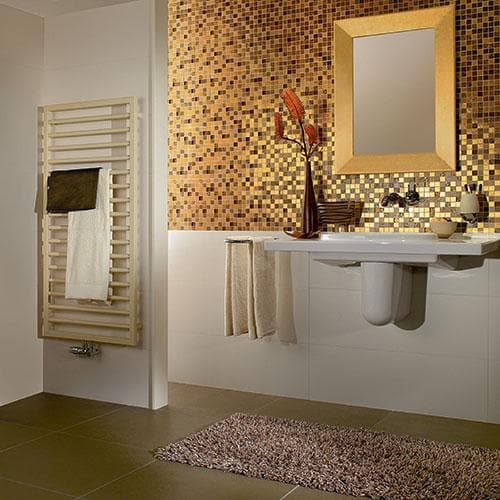

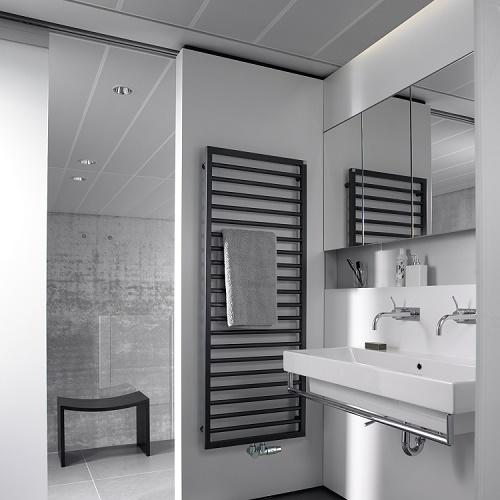

Zehnder Subway Bathroom Radiator
Zehnder Subway Bathroom Radiator
Zehnder Subway Bathroom Radiator
Zehnder Subway Bathroom Radiator
Zehnder Subway Bathroom Radiator

Is dual energy for you?

Zehnder and Bisque radiators can be fitted with dual energy heating options to continue to offer warmth and comfort throughout the home during summer months when the central heating system is not in use.

To make your radiator work in this manner, in addition to your towel rail you will need valves and an electric element with controls.

The element will be fitted on the ‘return’ side of vertical tubes on either side of the towel rail. This is the side the water flows out from, not into, the towel rail. If you need to identify this, please talk with your installer.

Depending on your chosen towel rail the valves may be able to be installed in the central connection points if your towel rail has these. This simplifies the installation as the element and valves are separated.

If your rail does not have central connections, it will need to be fitted with valves that can accommodate the element, like this:

or, via a ‘T’ piece which offsets the pipework like this:

Switch off the central heating

Vent the radiator to ensure there isn’t any air present

Close the flow valve (only)

Activate the immersion heater as required

De-activate the immersion heater

Open the flow valve

The immersion heater should be fitted on the ‘return’ side of the radiator.

Simultaneous use of the electrical element and the central heating should be avoided as this will shorten the life of the element and invalidate the warranty.

We recommend that all electrical work be undertaken in accordance with current I.E.E wiring regulations. If in doubt of zoning requirements, we recommend that a 30mA R.C.D is installed.

'Dual energy' units are designed to be used for occasional heating i.e. Summer when it is a cool evening, the main heating is off but you would like to heat the bathroom only. In this situation you would use the electric element for a few hours and turn off.

If you require electricity only, then an additional heating element is not suitable – please choose an electric towel rail.

Zehnder Subway Bathroom Radiator

Regular price
£171.44
Sale price
£171.44
Include VAT Delivery Terms, options selected at checkout.

Delivery:
White/Chrome - 5 -7 working days
Volcanic/Titane (except SUB-150-045 &SUB-180-060 models) - 5 - 7 working days
Matt Black (except SUB-100-045 & SUB-100-060) - 5 - 7 working days
Non stock colours & sizes - 25 - 30 working days
Guarantee 5 Years
Heat output @ ΔT=50K
205 - 898 Watts
699 - 3064 BTU
Electric Immersion Rating 100 - 600 Watts

SKU: SUB-060-045
White / 613x450 (SUB-060-045) 31753112158308
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 613mm
Weight: 5.2kg
Delta 50 Watts: 310
Delta 50 BTU: 1058
Postition: Vertical
White / 973x450 (SUB-100-045) 31753112027236
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 973mm
Weight: 6.7kg
Delta 50 Watts: 401
Delta 50 BTU: 1368
Postition: Vertical
White / 973x600 (SUB-100-060) 31753112060004
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 973mm
Weight: 8.3kg
Delta 50 Watts: 499
Delta 50 BTU: 1703
Postition: Vertical
White / 1261x450 (SUB-130-045) 31753111601252
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1261mm
Weight: 8.6kg
Delta 50 Watts: 509
Delta 50 BTU: 1737
Postition: Vertical
White / 1261x600 (SUB-130-060) 31753111634020
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1261mm
Weight: 10.5kg
Delta 50 Watts: 639
Delta 50 BTU: 2180
Postition: Vertical
White / 1549x450 (SUB-150-045) 31753111666788
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1549mm
Weight: 10.6kg
Delta 50 Watts: 615
Delta 50 BTU: 2098
Postition: Vertical
White / 1549x600 (SUB-150-060) 31753111699556
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1549mm
Weight: 12.5kg
Delta 50 Watts: 772
Delta 50 BTU: 2634
Postition: Vertical
White / 1837x450 (SUB-180-045) 31753111765092
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1837mm
Weight: 12.2kg
Delta 50 Watts: 715
Delta 50 BTU: 2440
Postition: Vertical
White / 1837x600 (SUB-180-060) 31753111797860
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1837mm
Weight: 14.7kg
Delta 50 Watts: 898
Delta 50 BTU: 3064
Postition: Vertical
Volcanic / 613x450 (SUB-060-045-0336) 31753112223844
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 613mm
Weight: 5.2kg
Delta 50 Watts: 310
Delta 50 BTU: 1058
Postition: Vertical
Volcanic / 973x450 (SUB-100-045-0336) 31753112256612
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 973mm
Weight: 6.7kg
Delta 50 Watts: 401
Delta 50 BTU: 1368
Postition: Vertical
Volcanic / 973x600 (SUB-100-060-0336) 31753112289380
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 973mm
Weight: 8.3kg
Delta 50 Watts: 499
Delta 50 BTU: 1703
Postition: Vertical
Volcanic / 1261x450 (SUB-130-045-0336) 31753112322148
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1261mm
Weight: 8.6kg
Delta 50 Watts: 509
Delta 50 BTU: 1737
Postition: Vertical
Volcanic / 1261x600 (SUB-130-060-0336) 31753112354916
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1261mm
Weight: 10.5kg
Delta 50 Watts: 639
Delta 50 BTU: 2180
Postition: Vertical
Volcanic / 1549x600 (SUB-150-060-0336) 31753112453220
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1549mm
Weight: 12.5kg
Delta 50 Watts: 772
Delta 50 BTU: 2634
Postition: Vertical
Volcanic / 1837x450 (SUB-180-045-0336) 31753112485988
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1837mm
Weight: 12.2kg
Delta 50 Watts: 715
Delta 50 BTU: 2440
Postition: Vertical
Matt Black / 613x450 (SUB-060-045-0557) 31753113174116
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 613mm
Weight: 5.2kg
Delta 50 Watts: 310
Delta 50 BTU: 1058
Postition: Vertical
Matt Black / 973x450 (SUB-100-045-0557) 31753113206884
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 973mm
Weight: 6.7kg
Delta 50 Watts: 401
Delta 50 BTU: 1368
Postition: Vertical
Matt Black / 973x600 (SUB-100-060-0557) 31753113239652
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 973mm
Weight: 8.3kg
Delta 50 Watts: 499
Delta 50 BTU: 1703
Postition: Vertical
Matt Black / 1261x450 (SUB-130-045-0557) 31753113272420
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1261mm
Weight: 8.6kg
Delta 50 Watts: 509
Delta 50 BTU: 1737
Postition: Vertical
Matt Black / 1261x600 (SUB-130-060-0557) 31753113305188
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1261mm
Weight: 10.5kg
Delta 50 Watts: 639
Delta 50 BTU: 2180
Postition: Vertical
Matt Black / 1549x600 (SUB-150-060-0557) 31753113370724
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1549mm
Weight: 12.5kg
Delta 50 Watts: 772
Delta 50 BTU: 2634
Postition: Vertical
Matt Black / 1837x450 (SUB-180-045-0557) 31753113403492
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1837mm
Weight: 12.2kg
Delta 50 Watts: 715
Delta 50 BTU: 2440
Postition: Vertical
Matt Black / 1837x600 (SUB-180-060-MB) 37996516737216
Radiator Type: Dual Fuel
Immersion Rating:
Width:
Height:
Weight:
Delta 50 Watts:
Delta 50 BTU:
Postition:
Titane / 613x450 (SUB-060-045-0335) 31753112846436
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 613mm
Weight: 5.2kg
Delta 50 Watts: 310
Delta 50 BTU: 1058
Postition: Vertical
Titane / 973x450 (SUB-100-045-0335) 31753112879204
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 973mm
Weight: 6.7kg
Delta 50 Watts: 401
Delta 50 BTU: 1368
Postition: Vertical
Titane / 973x600 (SUB-100-060-0335) 31753112911972
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 973mm
Weight: 8.3kg
Delta 50 Watts: 499
Delta 50 BTU: 1703
Postition: Vertical
Titane / 1261x450 (SUB-130-045-0335) 31753112977508
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1261mm
Weight: 8.6kg
Delta 50 Watts: 509
Delta 50 BTU: 1737
Postition: Vertical
Titane / 1261x600 (SUB-130-060-0335) 31753113010276
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1261mm
Weight: 10.5kg
Delta 50 Watts: 639
Delta 50 BTU: 2180
Postition: Vertical
Titane / 1549x600 (SUB-150-060-0335) 31753113075812
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1549mm
Weight: 12.5kg
Delta 50 Watts: 772
Delta 50 BTU: 2634
Postition: Vertical
Titane / 1837x450 (SUB-180-045-0335) 31753113108580
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1837mm
Weight: 12.2kg
Delta 50 Watts: 715
Delta 50 BTU: 2440
Postition: Vertical
Chrome / 613x450 (SUBC-060-045) 31753112191076
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 613mm
Weight: 5.2kg
Delta 50 Watts: 310
Delta 50 BTU: 1058
Postition: Vertical
Chrome / 973x450 (SUBC-100-045) 31753112092772
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 973mm
Weight: 6.7kg
Delta 50 Watts: 401
Delta 50 BTU: 1368
Postition: Vertical
Chrome / 973x600 (SUBC-100-060) 31753112125540
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 973mm
Weight: 8.3kg
Delta 50 Watts: 499
Delta 50 BTU: 1703
Postition: Vertical
Chrome / 1261x450 (SUBC-130-045) 31753111830628
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1261mm
Weight: 8.6kg
Delta 50 Watts: 509
Delta 50 BTU: 1737
Postition: Vertical
Chrome / 1261x600 (SUBC-130-060) 31753111863396
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1261mm
Weight: 10.5kg
Delta 50 Watts: 639
Delta 50 BTU: 2180
Postition: Vertical
Chrome / 1549x450 (SUBC-150-045) 31753111896164
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1549mm
Weight: 10.6kg
Delta 50 Watts: 615
Delta 50 BTU: 2098
Postition: Vertical
Chrome / 1549x600 (SUBC-150-060) 31753111928932
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1549mm
Weight: 12.5kg
Delta 50 Watts: 772
Delta 50 BTU: 2634
Postition: Vertical
Chrome / 1837x450 (SUBC-180-045) 31753111961700
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1837mm
Weight: 12.2kg
Delta 50 Watts: 715
Delta 50 BTU: 2440
Postition: Vertical
Chrome / 1837x600 (SUBC-180-060) 31753111994468
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1837mm
Weight: 14.7kg
Delta 50 Watts: 898
Delta 50 BTU: 3064
Postition: Vertical
Custom Colour / 613x450 (SUB-060-045-CF) 27958604955748
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 613mm
Weight: 5.2kg
Delta 50 Watts: 310
Delta 50 BTU: 1058
Postition: Vertical
Custom Colour / 973x450 (SUB-100-045-CF) 27958608298084
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 973mm
Weight: 6.7kg
Delta 50 Watts: 401
Delta 50 BTU: 1368
Postition: Vertical
Custom Colour / 973x600 (SUB-100-060-CF) 27958613672036
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 973mm
Weight: 8.3kg
Delta 50 Watts: 499
Delta 50 BTU: 1703
Postition: Vertical
Custom Colour / 1261x450 (SUB-130-045-CF) 27958615507044
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1261mm
Weight: 8.6kg
Delta 50 Watts: 509
Delta 50 BTU: 1737
Postition: Vertical
Custom Colour / 1261x600 (SUB-130-060-CF) 27958616653924
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1261mm
Weight: 10.5kg
Delta 50 Watts: 639
Delta 50 BTU: 2180
Postition: Vertical
Custom Colour / 1549x450 (SUB-150-045-CF) 27958617964644
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1549mm
Weight: 10.6kg
Delta 50 Watts: 615
Delta 50 BTU: 2098
Postition: Vertical
Custom Colour / 1549x600 (SUB-150-060-CF) 27958618652772
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1549mm
Weight: 12.5kg
Delta 50 Watts: 772
Delta 50 BTU: 2634
Postition: Vertical
Custom Colour / 1837x450 (SUB-180-045-CF) 27958620356708
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1837mm
Weight: 12.2kg
Delta 50 Watts: 715
Delta 50 BTU: 2440
Postition: Vertical
Custom Colour / 1837x600 (SUB-180-060-CF) 27958622486628
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1837mm
Weight: 14.7kg
Delta 50 Watts: 898
Delta 50 BTU: 3064
Postition: Vertical

With its classic lines and broad appeal, the stainless steel Zehnder Subway towel rail offers versatility, comfort and superb design. It is available in stainless steel, white, volcanic, titane and chrome finishes. Dimension range from 613mm x 450mm to 1837mm x 600mm. An optional immersion heater allows the radiator to continue to offer warmth and comfort throughout the summer months when the central heating system is not in use.

This radiator is available in any of the Zehnder Colour System colours – see here - at a cost of the standard white + 25%. Colour swatches can be ordered here and the cost is refundable either when you return the swatch or place an order. Delivery of coloured radiators is normally c.4 weeks. Please contact us for further details.

Download PDF Spec
