The Zehnder Charleston radiator has played a key part in the Company’s success over the past 80 years.

Continuous advances in the quality of production methods and technology has kept the Charleston Multi-column at the forefront of the radiator market.

Take a look behind the scenes to discover how they are made.

High quality, using the latest technology and production methods

This is how the famous Zehnder Charleston Multi-column is made

During the first phase of production of a multi-column radiator, steel strips are wound into a coil measuring 1200mm to 1500mm in diameter and weighing over 2 tonnes. Steel tubes measuring 4 to 6 metres are used to create the radiator columns.

Production of the collector

The coils of steel are punched by a press to create the two halves of the collector. The two pieces are then welded together to form double-machined heads. These headers are then sanded and cut in half to create two collectors. These elements are then quality checked before moving onto the next stage.

Production of the section

The collectors and the tubes are now welded together and then ground to make neat joins. At each stage the sections are checked and quality controlled.

The sections are hermetically sealed and then immersed in a bath of water. Each section is then subjected to a pressure of 16 bar to check for leaks.

Assembly

The radiator sections are now connected to each other using tip-welding. Further testing then checks each radiator for leaks.

After testing, the radiator is suspended ready for the next stage in production.

The finishing touches

First of all the radiators are cleaned to remove any dust and grease. Next a base coat is applied using an electrophoretic technique in order to protect against corrosion and to give a perfect base. The radiator is then placed into a furnace, baking the primer on to the steel at about 180°C.

After sufficient cooling, the radiator is moved along the production line ready for powder coating. Powder coating is much more environmentally friendly than wet painting. Standard white radiators are automatically painted, whereas all other colours and finishes are manually sprayed.

The radiator is then returned to the oven where the powder melts evenly and gives the radiator a perfect finish that is resistant to shock and heat.

Before packing, each radiator is thoroughly quality checked once again and then up to 98% of radiators are packaged and wrapped using a fully automated system.

Zehnder Roda Vertical - Single Panel

Regular price
£165.73
Sale price
£165.73
Include VAT Delivery Terms, options selected at checkout.

Delivery:
White (except 1800 x 666mm model) - 5 -7 working days
Other colours and sizes -  25- 30 working days
Guarantee 5 Years
Heat output @
 ΔT=50K
:
568 - 1278 Watts
1940 - 4365 BTU

SKU: ROV-180-029
White / 1800x296 (ROV-180-029) 31753145286756
Radiator Type: Central Heating
Immersion Rating:
Width: 296mm
Height: 1800mm
Weight: 12kg
Delta 50 Watts: 568
Delta 50 BTU: 1940
Postition: Horizontal
White / 1800x370 (ROV-180-037) 31753145319524
Radiator Type: Central Heating
Immersion Rating:
Width: 370mm
Height: 1800mm
Weight: 15kg
Delta 50 Watts: 710
Delta 50 BTU: 2425
Postition: Horizontal
White / 1800x444 (ROV-180-044) 31753145352292
Radiator Type: Central Heating
Immersion Rating:
Width: 444mm
Height: 1800mm
Weight: 18kg
Delta 50 Watts: 852
Delta 50 BTU: 2910
Postition: Horizontal
White / 1800x518 (ROV-180-051) 31753145385060
Radiator Type: Central Heating
Immersion Rating:
Width: 518mm
Height: 1800mm
Weight: 21kg
Delta 50 Watts: 994
Delta 50 BTU: 3395
Postition: Horizontal
White / 1800x592 (ROV-180-059) 31753145417828
Radiator Type: Central Heating
Immersion Rating:
Width: 592mm
Height: 1800mm
Weight: 24kg
Delta 50 Watts: 1136
Delta 50 BTU: 3880
Postition: Horizontal
White / 1800x666 (ROV-180-066) 31753145450596
Radiator Type: Central Heating
Immersion Rating:
Width: 666mm
Height: 1800mm
Weight: 27kg
Delta 50 Watts: 1278
Delta 50 BTU: 4365
Postition: Horizontal
Custom Colour / 1800x296 (ROV-180-029-CF) 27960884756580
Radiator Type: Central Heating
Immersion Rating:
Width: 296mm
Height: 1800mm
Weight: 12kg
Delta 50 Watts: 568
Delta 50 BTU: 1940
Postition: Horizontal
Custom Colour / 1800x370 (ROV-180-037-CF) 27960894718052
Radiator Type: Central Heating
Immersion Rating:
Width: 370mm
Height: 1800mm
Weight: 15kg
Delta 50 Watts: 710
Delta 50 BTU: 2425
Postition: Horizontal
Custom Colour / 1800x444 (ROV-180-044-CF) 27960898682980
Radiator Type: Central Heating
Immersion Rating:
Width: 444mm
Height: 1800mm
Weight: 18kg
Delta 50 Watts: 852
Delta 50 BTU: 2910
Postition: Horizontal
Custom Colour / 1800x518 (ROV-180-051-CF) 27960901435492
Radiator Type: Central Heating
Immersion Rating:
Width: 518mm
Height: 1800mm
Weight: 21kg
Delta 50 Watts: 994
Delta 50 BTU: 3395
Postition: Horizontal
Custom Colour / 1800x592 (ROV-180-059-CF) 27960911659108
Radiator Type: Central Heating
Immersion Rating:
Width: 592mm
Height: 1800mm
Weight: 24kg
Delta 50 Watts: 1136
Delta 50 BTU: 3880
Postition: Horizontal
Custom Colour / 1800x666 (ROV-180-066-CF) 27960912773220
Radiator Type: Central Heating
Immersion Rating:
Width: 666mm
Height: 1800mm
Weight: 27kg
Delta 50 Watts: 1278
Delta 50 BTU: 4365
Postition: Horizontal

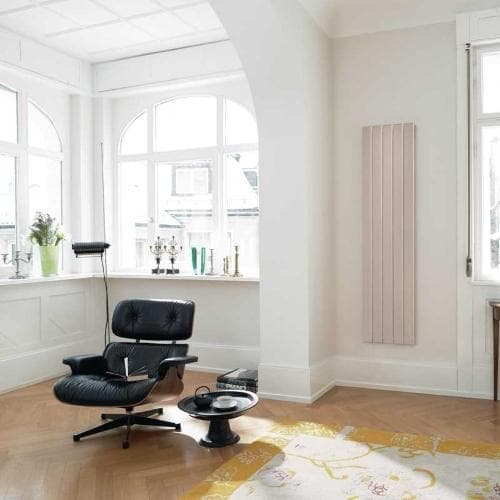

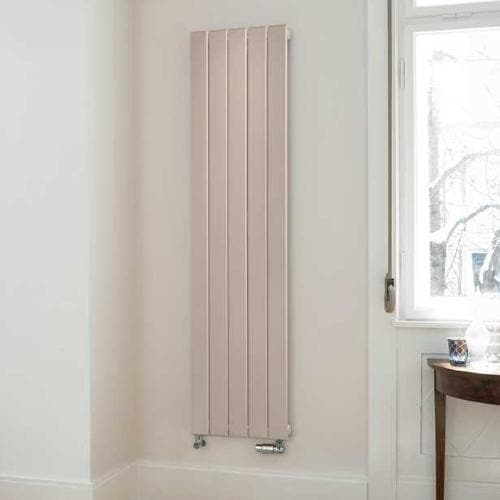

The Zehnder Roda (formerly Fassane) Vertical a simple and effect living room radiator. Optional double panel. Dimensions range from 1800mm x 296mm to 1800mm x 666mm.

This radiator is available in any of the Zehnder Colour System colours – see here - at a cost of the standard white + 25%. Colour swatches can be ordered here and the cost is refundable either when you return the swatch or place an order. Delivery of coloured radiators is normally c.4 weeks. Please contact us for further details.

Download PDF Spec
