Is dual energy for you?

Zehnder and Bisque radiators can be fitted with dual energy heating options to continue to offer warmth and comfort throughout the home during summer months when the central heating system is not in use.

To make your radiator work in this manner, in addition to your towel rail you will need valves and an electric element with controls.

The element will be fitted on the ‘return’ side of vertical tubes on either side of the towel rail. This is the side the water flows out from, not into, the towel rail. If you need to identify this, please talk with your installer.

Depending on your chosen towel rail the valves may be able to be installed in the central connection points if your towel rail has these. This simplifies the installation as the element and valves are separated.

If your rail does not have central connections, it will need to be fitted with valves that can accommodate the element, like this:

or, via a ‘T’ piece which offsets the pipework like this:

Switch off the central heating

Vent the radiator to ensure there isn’t any air present

Close the flow valve (only)

Activate the immersion heater as required

De-activate the immersion heater

Open the flow valve

The immersion heater should be fitted on the ‘return’ side of the radiator.

Simultaneous use of the electrical element and the central heating should be avoided as this will shorten the life of the element and invalidate the warranty.

We recommend that all electrical work be undertaken in accordance with current I.E.E wiring regulations. If in doubt of zoning requirements, we recommend that a 30mA R.C.D is installed.

'Dual energy' units are designed to be used for occasional heating i.e. Summer when it is a cool evening, the main heating is off but you would like to heat the bathroom only. In this situation you would use the electric element for a few hours and turn off.

If you require electricity only, then an additional heating element is not suitable – please choose an electric towel rail.

Zehnder Roda Spa Asym Right

Regular price
£342.87
Sale price
£342.87
Include VAT Delivery Terms, options selected at checkout.

Delivery:
White/Volcanic/Beige Quartz/Brown Quartz - 5 -7 working days
Non standard colours - 25 - 30 working days
Guarantee 5 Years

Heat output ΔT=50K:
429 - 809 Watts
1464 - 2760 BTU

SKU: ROFR-080-055
White / 805x550 (ROFR-080-055) 31753155903588
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 805mm
Weight: 10kg
Delta 50 Watts: 429
Delta 50 BTU: 1464
Postition: Vertical
White / 1183x550 (ROFR-120-055) 31753155936356
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 1183mm
Weight: 14kg
Delta 50 Watts: 594
Delta 50 BTU: 2027
Postition: Vertical
White / 1676x550 (ROFR-170-055) 31753156264036
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 1676mm
Weight: 20kg
Delta 50 Watts: 809
Delta 50 BTU: 2760
Postition: Vertical
Volcanic / 805x550 (ROFR-080-055-0336) 31753155969124
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 805mm
Weight: 10kg
Delta 50 Watts: 429
Delta 50 BTU: 1464
Postition: Vertical
Volcanic / 1183x550 (ROFR-120-055-0336) 31753156231268
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 1183mm
Weight: 14kg
Delta 50 Watts: 594
Delta 50 BTU: 2027
Postition: Vertical
Volcanic / 1676x550 (ROFR-170-055-0336) 31753156001892
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 1676mm
Weight: 20kg
Delta 50 Watts: 809
Delta 50 BTU: 2760
Postition: Vertical
Beige Quartz / 805x550 (ROFR-080-055-0523) 31753156034660
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 805mm
Weight: 10kg
Delta 50 Watts: 429
Delta 50 BTU: 1464
Postition: Vertical
Beige Quartz / 1183x550 (ROFR-120-055-0523) 31753156067428
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 1183mm
Weight: 14kg
Delta 50 Watts: 594
Delta 50 BTU: 2027
Postition: Vertical
Beige Quartz / 1676x550 (ROFR-170-055-0523) 31753156100196
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 1676mm
Weight: 20kg
Delta 50 Watts: 809
Delta 50 BTU: 2760
Postition: Vertical
Brown Quartz / 805x550 (ROFR-080-055-0529) 31753156165732
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 805mm
Weight: 10kg
Delta 50 Watts: 429
Delta 50 BTU: 1464
Postition: Vertical
Brown Quartz / 1183x550 (ROFR-120-055-0529) 31753156198500
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 1183mm
Weight: 14kg
Delta 50 Watts: 594
Delta 50 BTU: 2027
Postition: Vertical
Brown Quartz / 1676x550 (ROFR-170-055-0529) 31753156132964
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 1676mm
Weight: 20kg
Delta 50 Watts: 809
Delta 50 BTU: 2760
Postition: Vertical
Custom Colour / 805x550 (ROFR-080-055-CF) 27960119263332
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 805mm
Weight: 10kg
Delta 50 Watts: 429
Delta 50 BTU: 1464
Postition: Vertical
Custom Colour / 1183x550 (ROFR-120-055-CF) 27960120344676
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 1183mm
Weight: 14kg
Delta 50 Watts: 594
Delta 50 BTU: 2027
Postition: Vertical
Custom Colour / 1676x550 (ROFR-170-055-CF) 27960125063268
Radiator Type: Dual Fuel
Immersion Rating:
Width: 550mm
Height: 1676mm
Weight: 20kg
Delta 50 Watts: 809
Delta 50 BTU: 2760
Postition: Vertical

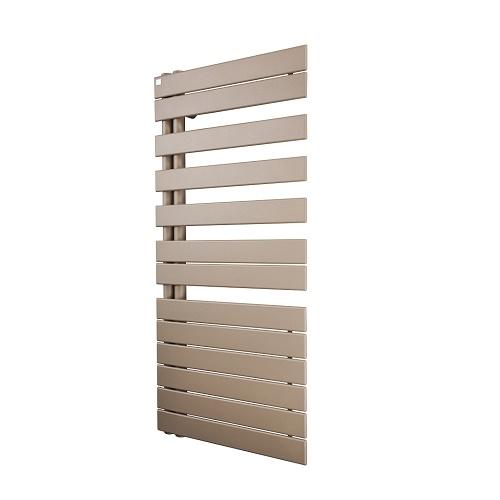

Zehnder Roda Spa Asym Right has a contemporary design with a high output this would be ideal in a modern bathroom with angular sanitary ware. It is available in left or right handed versions. The dimensions range from 805mm x 550mm to 1676mm x 550mm.

This radiator is available in any of the Zehnder Colour System colours – see here - at a cost of the standard white + 25%. Colour swatches can be ordered here and the cost is refundable either when you return the swatch or place an order. Delivery of coloured radiators is normally c.4 weeks. Please contact us for further details.

Download PDF Spec
