Zehnder Roda Horizontal Single Panel
Zehnder Roda Horizontal Single Panel
Zehnder Roda Horizontal Single Panel
Zehnder Roda Horizontal Single Panel

The Zehnder Charleston radiator has played a key part in the Company’s success over the past 80 years.

Continuous advances in the quality of production methods and technology has kept the Charleston Multi-column at the forefront of the radiator market.

Take a look behind the scenes to discover how they are made.

High quality, using the latest technology and production methods

This is how the famous Zehnder Charleston Multi-column is made

During the first phase of production of a multi-column radiator, steel strips are wound into a coil measuring 1200mm to 1500mm in diameter and weighing over 2 tonnes. Steel tubes measuring 4 to 6 metres are used to create the radiator columns.

Production of the collector

The coils of steel are punched by a press to create the two halves of the collector. The two pieces are then welded together to form double-machined heads. These headers are then sanded and cut in half to create two collectors. These elements are then quality checked before moving onto the next stage.

Production of the section

The collectors and the tubes are now welded together and then ground to make neat joins. At each stage the sections are checked and quality controlled.

The sections are hermetically sealed and then immersed in a bath of water. Each section is then subjected to a pressure of 16 bar to check for leaks.

Assembly

The radiator sections are now connected to each other using tip-welding. Further testing then checks each radiator for leaks.

After testing, the radiator is suspended ready for the next stage in production.

The finishing touches

First of all the radiators are cleaned to remove any dust and grease. Next a base coat is applied using an electrophoretic technique in order to protect against corrosion and to give a perfect base. The radiator is then placed into a furnace, baking the primer on to the steel at about 180°C.

After sufficient cooling, the radiator is moved along the production line ready for powder coating. Powder coating is much more environmentally friendly than wet painting. Standard white radiators are automatically painted, whereas all other colours and finishes are manually sprayed.

The radiator is then returned to the oven where the powder melts evenly and gives the radiator a perfect finish that is resistant to shock and heat.

Before packing, each radiator is thoroughly quality checked once again and then up to 98% of radiators are packaged and wrapped using a fully automated system.

Zehnder Roda Horizontal Single Panel

Regular price
£191.90
Sale price
£191.90
Include VAT Delivery Terms, options selected at checkout.

Delivery: White - 5 -7 working days Colours - 25- 30 working days Guarantee 5 Years Heat output ΔT=50K: 532 - 931 Watts 1815 - 3177 BTU
SKU: ROH-059-080
White / 592x800 (ROH-059-080) 31753100296292
Radiator Type: Central Heating
Immersion Rating:
Width: 800mm
Height: 592mm
Weight: 11.39kg
Delta 50 Watts: 532
Delta 50 BTU: 1815
Postition: Horizontal
White / 518x1200 (ROH-052-120) 31753100165220
Radiator Type: Central Heating
Immersion Rating:
Width: 1200mm
Height: 518mm
Weight: 16.1kg
Delta 50 Watts: 703
Delta 50 BTU: 2399
Postition: Horizontal
White / 592x1000 (ROH-059-100) 31753100197988
Radiator Type: Central Heating
Immersion Rating:
Width: 1000mm
Height: 592mm
Weight: 14.1kg
Delta 50 Watts: 665
Delta 50 BTU: 2269
Postition: Horizontal
White / 592x1200 (ROH-059-120) 31753100230756
Radiator Type: Central Heating
Immersion Rating:
Width: 1200mm
Height: 592mm
Weight: 18.1kg
Delta 50 Watts: 798
Delta 50 BTU: 2723
Postition: Horizontal
White / 592x1400 (ROH-059-140) 31753100263524
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 592mm
Weight: 19.7kg
Delta 50 Watts: 931
Delta 50 BTU: 3177
Postition: Horizontal
White / 518x1000 (ROH-052-100) 31753100132452
Radiator Type: Central Heating
Immersion Rating:
Width: 1000mm
Height: 518mm
Weight: 13.4kg
Delta 50 Watts: 586
Delta 50 BTU: 1999
Postition: Horizontal
Custom Colour / 518x1000 (ROH-052-100-CF) 27960969330788
Radiator Type: Central Heating
Immersion Rating:
Width: 1000mm
Height: 518mm
Weight: 13.4kg
Delta 50 Watts: 586
Delta 50 BTU: 1999
Postition: Horizontal
Custom Colour / 518x1200 (ROH-052-120-CF) 27960970313828
Radiator Type: Central Heating
Immersion Rating:
Width: 1200mm
Height: 518mm
Weight: 16.1kg
Delta 50 Watts: 703
Delta 50 BTU: 2399
Postition: Horizontal
Custom Colour / 592x1000 (ROH-059-100-CF) 27960984895588
Radiator Type: Central Heating
Immersion Rating:
Width: 1000mm
Height: 592mm
Weight: 14.1kg
Delta 50 Watts: 665
Delta 50 BTU: 2269
Postition: Horizontal
Custom Colour / 592x1200 (ROH-059-120-CF) 27960985583716
Radiator Type: Central Heating
Immersion Rating:
Width: 1200mm
Height: 592mm
Weight: 18.1kg
Delta 50 Watts: 798
Delta 50 BTU: 2723
Postition: Horizontal
Custom Colour / 592x1400 (ROH-059-140-CF) 27960986370148
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 592mm
Weight: 19.7kg
Delta 50 Watts: 931
Delta 50 BTU: 3177
Postition: Horizontal
Custom Colour / 592x800 (ROH-059-080-CF) 27960987582564
Radiator Type: Central Heating
Immersion Rating:
Width: 800mm
Height: 592mm
Weight: 11.39kg
Delta 50 Watts: 532
Delta 50 BTU: 1815
Postition: Horizontal

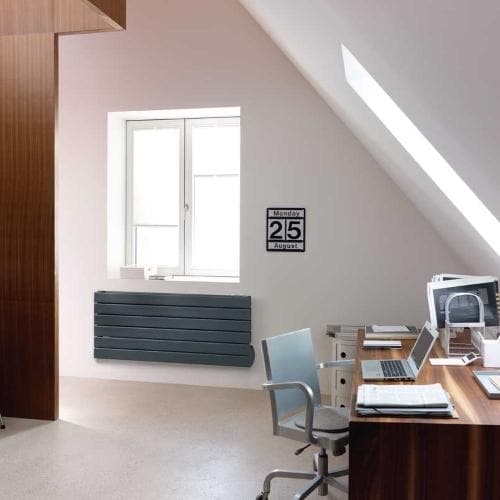

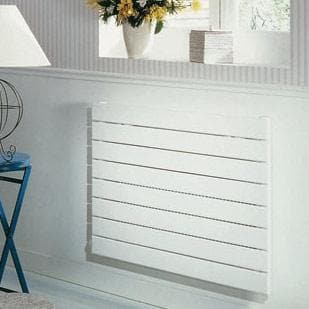

The Zehnder Roda (formerly Fassane) horizontal is a simple and effective living room radiator. A double panel version is also available. Dimensions range from 444mm x1400 to 592mm x 1400mm.

This radiator is available in any of the Zehnder Colour System colours – see here - at a cost of the standard white + 25%. Colour swatches can be ordered here and the cost is refundable either when you return the swatch or place an order. Delivery of coloured radiators is normally c.4 weeks. Please contact us for further details.

Download PDF Spec
