The Zehnder Charleston radiator has played a key part in the Company’s success over the past 80 years.

Continuous advances in the quality of production methods and technology has kept the Charleston Multi-column at the forefront of the radiator market.

Take a look behind the scenes to discover how they are made.

High quality, using the latest technology and production methods

This is how the famous Zehnder Charleston Multi-column is made

During the first phase of production of a multi-column radiator, steel strips are wound into a coil measuring 1200mm to 1500mm in diameter and weighing over 2 tonnes. Steel tubes measuring 4 to 6 metres are used to create the radiator columns.

Production of the collector

The coils of steel are punched by a press to create the two halves of the collector. The two pieces are then welded together to form double-machined heads. These headers are then sanded and cut in half to create two collectors. These elements are then quality checked before moving onto the next stage.

Production of the section

The collectors and the tubes are now welded together and then ground to make neat joins. At each stage the sections are checked and quality controlled.

The sections are hermetically sealed and then immersed in a bath of water. Each section is then subjected to a pressure of 16 bar to check for leaks.

Assembly

The radiator sections are now connected to each other using tip-welding. Further testing then checks each radiator for leaks.

After testing, the radiator is suspended ready for the next stage in production.

The finishing touches

First of all the radiators are cleaned to remove any dust and grease. Next a base coat is applied using an electrophoretic technique in order to protect against corrosion and to give a perfect base. The radiator is then placed into a furnace, baking the primer on to the steel at about 180°C.

After sufficient cooling, the radiator is moved along the production line ready for powder coating. Powder coating is much more environmentally friendly than wet painting. Standard white radiators are automatically painted, whereas all other colours and finishes are manually sprayed.

The radiator is then returned to the oven where the powder melts evenly and gives the radiator a perfect finish that is resistant to shock and heat.

Before packing, each radiator is thoroughly quality checked once again and then up to 98% of radiators are packaged and wrapped using a fully automated system.

Zehnder Metropolitan Horizontal

Regular price
£337.67
Sale price
£337.67
Include VAT Delivery Terms, options selected at checkout.

Delivery:
25 - 30 working days
Guarantee 5 Years
Heat output @ ΔT=50K
376 - 1148 Watts
1283 - 3917 BTU

SKU: MEH-030-140
White / 280x1400 (MEH-030-140) 27652641423460
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 280mm
Weight: 8.31kg
Delta 50 Watts: 376
Delta 50 BTU: 1283
Postition: Horizontal
White / 385x1400 (MEH-040-140) 27652641456228
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 385mm
Weight: 10.3kg
Delta 50 Watts: 474
Delta 50 BTU: 1617
Postition: Horizontal
White / 490x1400 (MEH-050-140) 27652641488996
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 490mm
Weight: 12.8kg
Delta 50 Watts: 585
Delta 50 BTU: 1996
Postition: Horizontal
White / 595x900 (MEH-060-090) 27652641521764
Radiator Type: Central Heating
Immersion Rating:
Width: 900mm
Height: 595mm
Weight: 10.1kg
Delta 50 Watts: 447
Delta 50 BTU: 1525
Postition: Horizontal
White / 595x1400 (MEH-060-140) 27652641554532
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 595mm
Weight: 15.3kg
Delta 50 Watts: 695
Delta 50 BTU: 2371
Postition: Horizontal
White / 1225x500 (MEH-120-050) 27652641587300
Radiator Type: Central Heating
Immersion Rating:
Width: 500mm
Height: 1225mm
Weight: 12.4kg
Delta 50 Watts: 563
Delta 50 BTU: 1921
Postition: Vertical
White / 1540x500 (MEH-150-050) 27652641652836
Radiator Type: Central Heating
Immersion Rating:
Width: 500mm
Height: 1540mm
Weight: 14.4kg
Delta 50 Watts: 730
Delta 50 BTU: 2491
Postition: Vertical
White / 1750x500 (MEH-180-050) 27652641685604
Radiator Type: Central Heating
Immersion Rating:
Width: 500mm
Height: 1750mm
Weight: 17.4kg
Delta 50 Watts: 795
Delta 50 BTU: 2713
Postition: Vertical
White / 385x1600 (MEH-040-160) 27652641751140
Radiator Type: Central Heating
Immersion Rating:
Width: 1600mm
Height: 385mm
Weight: 11.7kg
Delta 50 Watts: 542
Delta 50 BTU: 1849
Postition: Horizontal
White / 490x1600 (MEH-050-160) 27652641816676
Radiator Type: Central Heating
Immersion Rating:
Width: 1600mm
Height: 490mm
Weight: 14.6kg
Delta 50 Watts: 669
Delta 50 BTU: 2283
Postition: Horizontal
White / 490x1800 (MEH-050-180) 27652641849444
Radiator Type: Central Heating
Immersion Rating:
Width: 1800mm
Height: 490mm
Weight: 16.3kg
Delta 50 Watts: 753
Delta 50 BTU: 2569
Postition: Horizontal
White / 595x1600 (MEH-060-160) 27652641914980
Radiator Type: Central Heating
Immersion Rating:
Width: 1600mm
Height: 595mm
Weight: 17.4kg
Delta 50 Watts: 794
Delta 50 BTU: 2709
Postition: Horizontal
White / 595x1800 (MEH-060-180) 27652641980516
Radiator Type: Central Heating
Immersion Rating:
Width: 1800mm
Height: 595mm
Weight: 19.5kg
Delta 50 Watts: 894
Delta 50 BTU: 3050
Postition: Horizontal
White / 595x2000 (MEH-060-200) 27652642013284
Radiator Type: Central Heating
Immersion Rating:
Width: 2000mm
Height: 595mm
Weight: 21.6kg
Delta 50 Watts: 993
Delta 50 BTU: 3388
Postition: Horizontal
White / 805x500 (MEH-080-050) 27652642078820
Radiator Type: Central Heating
Immersion Rating:
Width: 500mm
Height: 805mm
Weight: 8.2kg
Delta 50 Watts: 387
Delta 50 BTU: 1320
Postition: Vertical
White / 805x600 (MEH-080-060) 27652642111588
Radiator Type: Central Heating
Immersion Rating:
Width: 600mm
Height: 805mm
Weight: 9.7kg
Delta 50 Watts: 449
Delta 50 BTU: 1532
Postition: Vertical
White / 1225x400 (MEH-120-040) 27652642177124
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 1225mm
Weight: 10.3kg
Delta 50 Watts: 469
Delta 50 BTU: 1600
Postition: Vertical
White / 1225x600 (MEH-120-060) 27652642209892
Radiator Type: Central Heating
Immersion Rating:
Width: 600mm
Height: 1225mm
Weight: 14.5kg
Delta 50 Watts: 653
Delta 50 BTU: 2228
Postition: Vertical
White / 1540x600 (MEH-150-060) 27652642275428
Radiator Type: Central Heating
Immersion Rating:
Width: 600mm
Height: 1540mm
Weight: 16.8kg
Delta 50 Watts: 871
Delta 50 BTU: 2972
Postition: Vertical
White / 1750x400 (MEH-180-040) 27652642308196
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 1750mm
Weight: 14.4kg
Delta 50 Watts: 663
Delta 50 BTU: 2262
Postition: Vertical
White / 1540x400 (MEH-150-040) 27652642373732
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 1540mm
Weight: 12kg
Delta 50 Watts: 582
Delta 50 BTU: 1986
Postition: Vertical
White / 385x1800 (MEH-040-180) 27652642439268
Radiator Type: Central Heating
Immersion Rating:
Width: 1800mm
Height: 385mm
Weight: 13.1kg
Delta 50 Watts: 610
Delta 50 BTU: 2081
Postition: Horizontal
White / 385x2000 (MEH-040-200) 27652642472036
Radiator Type: Central Heating
Immersion Rating:
Width: 2000mm
Height: 385mm
Weight: 14.5kg
Delta 50 Watts: 277
Delta 50 BTU: 945
Postition: Horizontal
White / 490x2000 (MEH-050-200) 27652642537572
Radiator Type: Central Heating
Immersion Rating:
Width: 2000mm
Height: 490mm
Weight: 18.1kg
Delta 50 Watts: 836
Delta 50 BTU: 2852
Postition: Horizontal
White / 700x900 (MEH-070-090) 27652642603108
Radiator Type: Central Heating
Immersion Rating:
Width: 900mm
Height: 700mm
Weight: 11.8kg
Delta 50 Watts: 517
Delta 50 BTU: 1764
Postition: Horizontal
White / 700x1400 (MEH-070-140) 27652642635876
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 700mm
Weight: 17.9kg
Delta 50 Watts: 804
Delta 50 BTU: 2743
Postition: Horizontal
White / 700x1600 (MEH-070-160) 27652642701412
Radiator Type: Central Heating
Immersion Rating:
Width: 1600mm
Height: 700mm
Weight: 20.3kg
Delta 50 Watts: 919
Delta 50 BTU: 3136
Postition: Horizontal
White / 700x1800 (MEH-070-180) 27652642766948
Radiator Type: Central Heating
Immersion Rating:
Width: 1800mm
Height: 700mm
Weight: 22.7kg
Delta 50 Watts: 1034
Delta 50 BTU: 3528
Postition: Horizontal
White / 700x2000 (MEH-070-200) 27652642832484
Radiator Type: Central Heating
Immersion Rating:
Width: 2000mm
Height: 700mm
Weight: 25.1kg
Delta 50 Watts: 1148
Delta 50 BTU: 3917
Postition: Horizontal
White / 805x400 (MEH-080-040) 27652642898020
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 805mm
Weight: 14.4kg
Delta 50 Watts: 663
Delta 50 BTU: 2262
Postition: Horizontal
White / 1750x600 (MEH-180-060) 27652642963556
Radiator Type: Central Heating
Immersion Rating:
Width: 600mm
Height: 1750mm
Weight: 20.4kg
Delta 50 Watts: 922
Delta 50 BTU: 3146
Postition: Horizontal
Custom Colour / 280x1400 (MEH-030-140-CF) 31825054007396
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 280mm
Weight: 8.31kg
Delta 50 Watts: 376
Delta 50 BTU: 1283
Postition: Horizontal
Custom Colour / 385x1400 (MEH-040-140-CF) 31825054335076
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 385mm
Weight: 10.3kg
Delta 50 Watts: 474
Delta 50 BTU: 1617
Postition: Horizontal
Custom Colour / 490x1400 (MEH-050-140-CF) 31825054498916
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 490mm
Weight: 12.8kg
Delta 50 Watts: 585
Delta 50 BTU: 1996
Postition: Horizontal
Custom Colour / 595x900 (MEH-060-090-CF) 31825054531684
Radiator Type: Central Heating
Immersion Rating:
Width: 900mm
Height: 595mm
Weight: 10.1kg
Delta 50 Watts: 447
Delta 50 BTU: 1525
Postition: Horizontal
Custom Colour / 595x1400 (MEH-060-140-CF) 31825054564452
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 595mm
Weight: 15.3kg
Delta 50 Watts: 695
Delta 50 BTU: 2371
Postition: Horizontal
Custom Colour / 1225x500 (MEH-120-050-CF) 31825054597220
Radiator Type: Central Heating
Immersion Rating:
Width: 500mm
Height: 1225mm
Weight: 12.4kg
Delta 50 Watts: 563
Delta 50 BTU: 1921
Postition: Vertical
Custom Colour / 1540x500 (MEH-150-050-CF) 31825054662756
Radiator Type: Central Heating
Immersion Rating:
Width: 500mm
Height: 1540mm
Weight: 14.4kg
Delta 50 Watts: 730
Delta 50 BTU: 2491
Postition: Vertical
Custom Colour / 1750x500 (MEH-180-050-CF) 31825054695524
Radiator Type: Central Heating
Immersion Rating:
Width: 500mm
Height: 1750mm
Weight: 17.4kg
Delta 50 Watts: 795
Delta 50 BTU: 2713
Postition: Vertical
Custom Colour / 385x1600 (MEH-040-160-CF) 31825054793828
Radiator Type: Central Heating
Immersion Rating:
Width: 1600mm
Height: 385mm
Weight: 11.7kg
Delta 50 Watts: 542
Delta 50 BTU: 1849
Postition: Horizontal
Custom Colour / 490x1600 (MEH-050-160-CF) 31825054924900
Radiator Type: Central Heating
Immersion Rating:
Width: 1600mm
Height: 490mm
Weight: 14.6kg
Delta 50 Watts: 669
Delta 50 BTU: 2283
Postition: Horizontal
Custom Colour / 490x1800 (MEH-050-180-CF) 31825055350884
Radiator Type: Central Heating
Immersion Rating:
Width: 1800mm
Height: 490mm
Weight: 16.3kg
Delta 50 Watts: 753
Delta 50 BTU: 2569
Postition: Horizontal
Custom Colour / 595x1600 (MEH-060-160-CF) 31825055481956
Radiator Type: Central Heating
Immersion Rating:
Width: 1600mm
Height: 595mm
Weight: 17.4kg
Delta 50 Watts: 794
Delta 50 BTU: 2709
Postition: Horizontal
Custom Colour / 595x1800 (MEH-060-180-CF) 31825055514724
Radiator Type: Central Heating
Immersion Rating:
Width: 1800mm
Height: 595mm
Weight: 19.5kg
Delta 50 Watts: 894
Delta 50 BTU: 3050
Postition: Horizontal
Custom Colour / 595x2000 (MEH-060-200-CF) 31825055547492
Radiator Type: Central Heating
Immersion Rating:
Width: 2000mm
Height: 595mm
Weight: 21.6kg
Delta 50 Watts: 993
Delta 50 BTU: 3388
Postition: Horizontal
Custom Colour / 805x500 (MEH-080-050-CF) 31825055580260
Radiator Type: Central Heating
Immersion Rating:
Width: 500mm
Height: 805mm
Weight: 8.2kg
Delta 50 Watts: 387
Delta 50 BTU: 1320
Postition: Vertical
Custom Colour / 805x600 (MEH-080-060-CF) 31825055613028
Radiator Type: Central Heating
Immersion Rating:
Width: 600mm
Height: 805mm
Weight: 9.7kg
Delta 50 Watts: 449
Delta 50 BTU: 1532
Postition: Vertical
Custom Colour / 1225x400 (MEH-120-040-CF) 31825055776868
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 1225mm
Weight: 10.3kg
Delta 50 Watts: 469
Delta 50 BTU: 1600
Postition: Vertical
Custom Colour / 1225x600 (MEH-120-060-CF) 31825055842404
Radiator Type: Central Heating
Immersion Rating:
Width: 600mm
Height: 1225mm
Weight: 14.5kg
Delta 50 Watts: 653
Delta 50 BTU: 2228
Postition: Vertical
Custom Colour / 1540x600 (MEH-150-060-CF) 31825056071780
Radiator Type: Central Heating
Immersion Rating:
Width: 600mm
Height: 1540mm
Weight: 16.8kg
Delta 50 Watts: 871
Delta 50 BTU: 2972
Postition: Vertical
Custom Colour / 1750x400 (MEH-180-040-CF) 31825056268388
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 1750mm
Weight: 14.4kg
Delta 50 Watts: 663
Delta 50 BTU: 2262
Postition: Vertical
Custom Colour / 1540x400 (MEH-150-040-CF) 31825056301156
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 1540mm
Weight: 12kg
Delta 50 Watts: 582
Delta 50 BTU: 1986
Postition: Vertical
Custom Colour / 385x1800 (MEH-040-180-CF) 31825056333924
Radiator Type: Central Heating
Immersion Rating:
Width: 1800mm
Height: 385mm
Weight: 13.1kg
Delta 50 Watts: 610
Delta 50 BTU: 2081
Postition: Horizontal
Custom Colour / 385x2000 (MEH-040-200-CF) 31825056366692
Radiator Type: Central Heating
Immersion Rating:
Width: 2000mm
Height: 385mm
Weight: 14.5kg
Delta 50 Watts: 277
Delta 50 BTU: 945
Postition: Horizontal
Custom Colour / 490x2000 (MEH-050-200-CF) 31825056497764
Radiator Type: Central Heating
Immersion Rating:
Width: 2000mm
Height: 490mm
Weight: 18.1kg
Delta 50 Watts: 836
Delta 50 BTU: 2854
Postition: Horizontal
Custom Colour / 700x900 (MEH-070-090-CF) 31825056596068
Radiator Type: Central Heating
Immersion Rating:
Width: 900mm
Height: 700mm
Weight: 11.8kg
Delta 50 Watts: 517
Delta 50 BTU: 1764
Postition: Horizontal
Custom Colour / 700x1400 (MEH-070-140-CF) 31825056694372
Radiator Type: Central Heating
Immersion Rating:
Width: 1400mm
Height: 700mm
Weight: 17.9kg
Delta 50 Watts: 804
Delta 50 BTU: 2743
Postition: Horizontal
Custom Colour / 700x1600 (MEH-070-160-CF) 31825056858212
Radiator Type: Central Heating
Immersion Rating:
Width: 1600mm
Height: 700mm
Weight: 20.3kg
Delta 50 Watts: 919
Delta 50 BTU: 3136
Postition: Horizontal
Custom Colour / 700x1800 (MEH-070-180-CF) 31825056890980
Radiator Type: Central Heating
Immersion Rating:
Width: 1800mm
Height: 700mm
Weight: 22.7kg
Delta 50 Watts: 1034
Delta 50 BTU: 3528
Postition: Horizontal
Custom Colour / 700x2000 (MEH-070-200-CF) 31825056923748
Radiator Type: Central Heating
Immersion Rating:
Width: 2000mm
Height: 700mm
Weight: 25.1kg
Delta 50 Watts: 1148
Delta 50 BTU: 3917
Postition: Horizontal
Custom Colour / 805x400 (MEH-080-040-CF) 31825057087588
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 805mm
Weight: 14.4kg
Delta 50 Watts: 663
Delta 50 BTU: 2262
Postition: Horizontal
Custom Colour / 1750x600 (MEH-180-060-CF) 31825057120356
Radiator Type: Central Heating
Immersion Rating:
Width: 600mm
Height: 1750mm
Weight: 20.4kg
Delta 50 Watts: 922
Delta 50 BTU: 3146
Postition: Horizontal

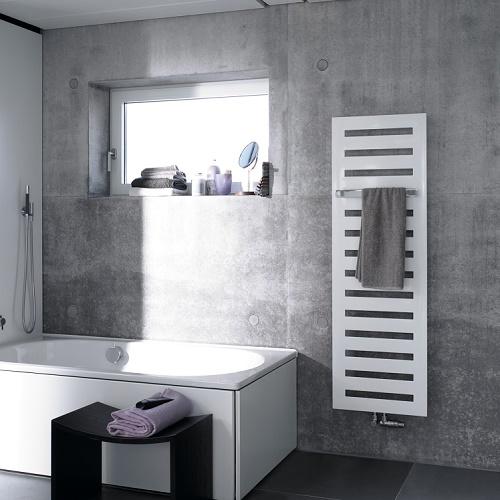

The Zehnder Metropolitan Horizontal is a modern, stylish and elegant interpretation of the traditional towel radiator.  It is stocked in a white finish but is also available in other colours – please contact us on 01892 600171 to discuss your requirements.  Sizes marked with an asterisk are not stocked product and are subject to a 25-30 day leadtime.

This radiator is available in any of the Zehnder Colour System colours – see here - at a cost of the standard white + 25%. Colour swatches can be ordered here and the cost is refundable either when you return the swatch or place an order. Delivery of coloured radiators is normally c.4 weeks. Please contact us for further details.

Download PDF Spec
