Is dual energy for you?

Zehnder and Bisque radiators can be fitted with dual energy heating options to continue to offer warmth and comfort throughout the home during summer months when the central heating system is not in use.

To make your radiator work in this manner, in addition to your towel rail you will need valves and an electric element with controls.

The element will be fitted on the ‘return’ side of vertical tubes on either side of the towel rail. This is the side the water flows out from, not into, the towel rail. If you need to identify this, please talk with your installer.

Depending on your chosen towel rail the valves may be able to be installed in the central connection points if your towel rail has these. This simplifies the installation as the element and valves are separated.

If your rail does not have central connections, it will need to be fitted with valves that can accommodate the element, like this:

or, via a ‘T’ piece which offsets the pipework like this:

Switch off the central heating

Vent the radiator to ensure there isn’t any air present

Close the flow valve (only)

Activate the immersion heater as required

De-activate the immersion heater

Open the flow valve

The immersion heater should be fitted on the ‘return’ side of the radiator.

Simultaneous use of the electrical element and the central heating should be avoided as this will shorten the life of the element and invalidate the warranty.

We recommend that all electrical work be undertaken in accordance with current I.E.E wiring regulations. If in doubt of zoning requirements, we recommend that a 30mA R.C.D is installed.

'Dual energy' units are designed to be used for occasional heating i.e. Summer when it is a cool evening, the main heating is off but you would like to heat the bathroom only. In this situation you would use the electric element for a few hours and turn off.

If you require electricity only, then an additional heating element is not suitable – please choose an electric towel rail.

Zehnder Klaro Bathroom

Regular price
£111.57
Sale price
£111.57
Include VAT Delivery Terms, options selected at checkout.

Delivery:
White/Anthracite/Beige Quartz/Chrome (except ZSL-080-045) - 5 -7 working days
Non stock colours 25-30 working days
Guarantee
5 Years
Heat output @ ΔT=50K
283 - 966 Watts
966 - 3296 Btu

SKU: ZSL-080-045
White / 748x450 (ZSL-080-045) 31753103704164
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 748mm
Weight: 5.4kg
Delta 50 Watts: 354
Delta 50 BTU: 1208
Postition: Vertical
White / 748x500 (ZSL-080-050) 31753103736932
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 748mm
Weight: 5.8kg
Delta 50 Watts: 388
Delta 50 BTU: 1324
Postition: Vertical
White / 748x600 (ZSL-080-060) 31753103769700
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 748mm
Weight: 6.7kg
Delta 50 Watts: 455
Delta 50 BTU: 1552
Postition: Vertical
White / 1148x450 (ZSL-120-045) 31753103802468
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1148mm
Weight: 8.1kg
Delta 50 Watts: 521
Delta 50 BTU: 1778
Postition: Vertical
White / 1148x500 (ZSL-120-050) 31753103835236
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1148mm
Weight: 8.7kg
Delta 50 Watts: 571
Delta 50 BTU: 1948
Postition: Vertical
White / 1148x600 (ZSL-120-060) 31753103868004
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1148mm
Weight: 9.8kg
Delta 50 Watts: 670
Delta 50 BTU: 2286
Postition: Vertical
White / 1466x500 (ZSL-150-050) 31753103900772
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1466mm
Weight: 10.9kg
Delta 50 Watts: 716
Delta 50 BTU: 2443
Postition: Vertical
White / 1466x600 (ZSL-150-060) 31753103933540
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1466mm
Weight: 12.3kg
Delta 50 Watts: 839
Delta 50 BTU: 2863
Postition: Vertical
White / 1708x500 (ZSL-170-050) 31753103966308
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1708mm
Weight: 12.2kg
Delta 50 Watts: 824
Delta 50 BTU: 2811
Postition: Vertical
White / 1708x600 (ZSL-170-060) 31753103999076
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1708mm
Weight: 14.2kg
Delta 50 Watts: 966
Delta 50 BTU: 3296
Postition: Vertical
Volcanic / 748x450 (ZSL-080-045-0336) 31753104031844
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 748mm
Weight: 5.4kg
Delta 50 Watts: 354
Delta 50 BTU: 1208
Postition: Vertical
Volcanic / 1148x500 (ZSL-120-050-0336) 31753104064612
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1148mm
Weight: 8.7kg
Delta 50 Watts: 571
Delta 50 BTU: 1948
Postition: Vertical
Volcanic / 1148x600 (ZSL-120-060-0336) 31753104097380
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1148mm
Weight: 9.8kg
Delta 50 Watts: 670
Delta 50 BTU: 2286
Postition: Vertical
Volcanic / 1466x500 (ZSL-150-050-0336) 31753104130148
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1466mm
Weight: 10.9kg
Delta 50 Watts: 716
Delta 50 BTU: 2443
Postition: Vertical
Volcanic / 1466x600 (ZSL-150-060-0336) 31753104162916
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1466mm
Weight: 12.3kg
Delta 50 Watts: 839
Delta 50 BTU: 2863
Postition: Vertical
Volcanic / 1708x500 (ZSL-170-050-0336) 31753104195684
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1708mm
Weight: 12.2kg
Delta 50 Watts: 824
Delta 50 BTU: 2811
Postition: Vertical
Volcanic / 1708x600 (ZSL-170-060-0336) 31753104228452
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1708mm
Weight: 14.2kg
Delta 50 Watts: 966
Delta 50 BTU: 3296
Postition: Vertical

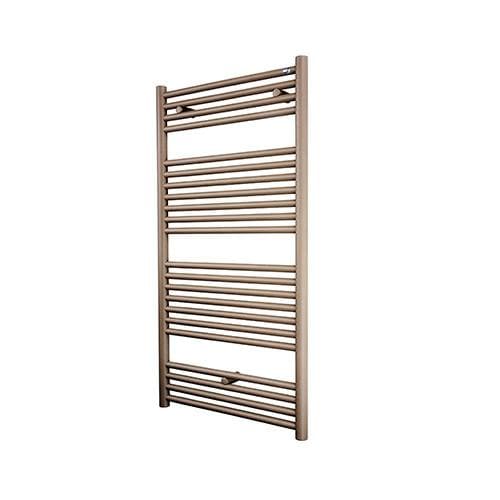

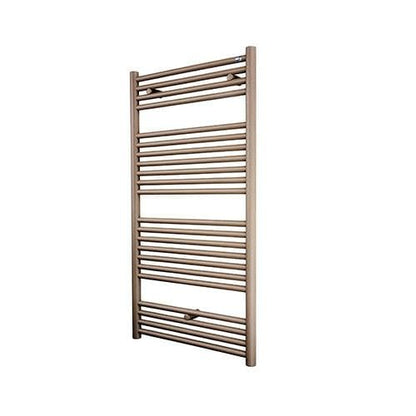

Beige Quartz / 748x450 (ZSL-080-045-0523) 31753104261220
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 748mm
Weight: 5.4kg
Delta 50 Watts: 354
Delta 50 BTU: 1208
Postition: Vertical
Beige Quartz / 1148x500 (ZSL-120-050-0523) 31753104293988
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1148mm
Weight: 8.7kg
Delta 50 Watts: 571
Delta 50 BTU: 1948
Postition: Vertical
Beige Quartz / 1148x600 (ZSL-120-060-0523) 31753104326756
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1148mm
Weight: 9.8kg
Delta 50 Watts: 670
Delta 50 BTU: 2286
Postition: Vertical
Beige Quartz / 1466x500 (ZSL-150-050-0523) 31753104359524
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1466mm
Weight: 10.9kg
Delta 50 Watts: 716
Delta 50 BTU: 2443
Postition: Vertical
Beige Quartz / 1466x600 (ZSL-150-060-0523) 31753104392292
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1466mm
Weight: 12.3kg
Delta 50 Watts: 839
Delta 50 BTU: 2863
Postition: Vertical
Beige Quartz / 1708x500 (ZSL-170-050-0523) 31753104425060
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1708mm
Weight: 12.2kg
Delta 50 Watts: 824
Delta 50 BTU: 2811
Postition: Vertical
Beige Quartz / 1708x600 (ZSL-170-060-0523) 31753104457828
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1708mm
Weight: 14.2kg
Delta 50 Watts: 966
Delta 50 BTU: 3296
Postition: Vertical
Brown Quartz / 748x450 (ZSL-080-045-0529) 31753104490596
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 748mm
Weight: 5.4kg
Delta 50 Watts: 354
Delta 50 BTU: 1208
Postition: Vertical
Brown Quartz / 1148x500 (ZSL-120-050-0529) 31753104523364
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1148mm
Weight: 8.7kg
Delta 50 Watts: 571
Delta 50 BTU: 1948
Postition: Vertical
Brown Quartz / 1148x600 (ZSL-120-060-0529) 31753104556132
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1148mm
Weight: 9.8kg
Delta 50 Watts: 670
Delta 50 BTU: 2286
Postition: Vertical
Brown Quartz / 1466x500 (ZSL-150-050-0529) 31753104588900
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1466mm
Weight: 10.9kg
Delta 50 Watts: 716
Delta 50 BTU: 2443
Postition: Vertical
Brown Quartz / 1466x600 (ZSL-150-060-0529) 31753104621668
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1466mm
Weight: 12.3kg
Delta 50 Watts: 839
Delta 50 BTU: 2863
Postition: Vertical
Brown Quartz / 1708x500 (ZSL-170-050-0529) 31753104654436
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1708mm
Weight: 12.2kg
Delta 50 Watts: 824
Delta 50 BTU: 2811
Postition: Vertical
Brown Quartz / 1708x600 (ZSL-170-060-0529) 31753104687204
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1708mm
Weight: 14.2kg
Delta 50 Watts: 966
Delta 50 BTU: 3296
Postition: Vertical
Chrome / 748x500 (ZSLC-080-050) 31753104719972
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 748mm
Weight: 5.8kg
Delta 50 Watts: 388
Delta 50 BTU: 1324
Postition: Vertical
Chrome / 748x600 (ZSLC-080-060) 31753104752740
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 748mm
Weight: 6.7kg
Delta 50 Watts: 455
Delta 50 BTU: 1552
Postition: Vertical
Chrome / 1148x500 (ZSLC-120-050) 31753104785508
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1148mm
Weight: 8.7kg
Delta 50 Watts: 571
Delta 50 BTU: 1948
Postition: Vertical
Chrome / 1148x600 (ZSLC-120-060) 31753104818276
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1148mm
Weight: 9.8kg
Delta 50 Watts: 670
Delta 50 BTU: 2286
Postition: Vertical
Chrome / 1466x500 (ZSLC-150-050) 31753104851044
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1466mm
Weight: 10.9kg
Delta 50 Watts: 716
Delta 50 BTU: 2443
Postition: Vertical
Chrome / 1466x600 (ZSLC-150-060) 31753104883812
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1466mm
Weight: 12.3kg
Delta 50 Watts: 839
Delta 50 BTU: 2863
Postition: Vertical
Chrome / 1708x500 (ZSLC-170-050) 31753104916580
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1708mm
Weight: 12.2kg
Delta 50 Watts: 824
Delta 50 BTU: 2811
Postition: Vertical
Chrome / 1708x600 (ZSLC-170-060) 31753104949348
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1708mm
Weight: 14.2kg
Delta 50 Watts: 966
Delta 50 BTU: 3296
Postition: Vertical
Custom Colour / 748x450 (ZSL-080-045-CF) 27949169606756
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 748mm
Weight: 5.4kg
Delta 50 Watts: 354
Delta 50 BTU: 1208
Postition: Vertical
Custom Colour / 748x500 (ZSL-080-050-CF) 27949174947940
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 748mm
Weight: 5.8kg
Delta 50 Watts: 388
Delta 50 BTU: 1324
Postition: Vertical
Custom Colour / 748x600 (ZSL-080-060-CF) 27949178683492
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 748mm
Weight: 6.7kg
Delta 50 Watts: 455
Delta 50 BTU: 1552
Postition: Vertical
Custom Colour / 1148x450 (ZSL-120-045-CF) 27949185400932
Radiator Type: Dual Fuel
Immersion Rating:
Width: 450mm
Height: 1148mm
Weight: 8.1kg
Delta 50 Watts: 521
Delta 50 BTU: 1778
Postition: Vertical
Custom Colour / 1148x500 (ZSL-120-050-CF) 27949193298020
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1148mm
Weight: 8.7kg
Delta 50 Watts: 571
Delta 50 BTU: 1948
Postition: Vertical
Custom Colour / 1148x600 (ZSL-120-060-CF) 27949200146532
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1148mm
Weight: 9.8kg
Delta 50 Watts: 670
Delta 50 BTU: 2286
Postition: Vertical
Custom Colour / 1466x500 (ZSL-150-050-CF) 27949209583716
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1466mm
Weight: 10.9kg
Delta 50 Watts: 716
Delta 50 BTU: 2443
Postition: Vertical
Custom Colour / 1466x600 (ZSL-150-060-CF) 27949211517028
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1466mm
Weight: 12.3kg
Delta 50 Watts: 839
Delta 50 BTU: 2863
Postition: Vertical
Custom Colour / 1708x500 (ZSL-170-050-CF) 27949203390564
Radiator Type: Dual Fuel
Immersion Rating:
Width: 500mm
Height: 1708mm
Weight: 12.2kg
Delta 50 Watts: 824
Delta 50 BTU: 2811
Postition: Vertical
Custom Colour / 1708x600 (ZSL-170-060-CF) 27949205749860
Radiator Type: Dual Fuel
Immersion Rating:
Width: 600mm
Height: 1708mm
Weight: 14.2kg
Delta 50 Watts: 966
Delta 50 BTU: 3296
Postition: Vertical

The Zehnder Klaro (formerly Palma) is a stylishly designed radiator available in white or chrome ideal for all modern bathrooms.

This radiator is available in any of the Zehnder Colour System colours – see here - at a cost of the standard white + 25%. Colour swatches can be ordered here and the cost is refundable either when you return the swatch or place an order. Delivery of coloured radiators is normally c.4 weeks. Please contact us for further details.

Download PDF Spec
