The Zehnder Charleston radiator has played a key part in the Company’s success over the past 80 years.
Continuous advances in the quality of production methods and technology has kept the Charleston Multi-column at the forefront of the radiator market.
Take a look behind the scenes to discover how they are made.
High quality, using the latest technology and production methods
This is how the famous Zehnder Charleston Multi-column is made
During the first phase of production of a multi-column radiator, steel strips are wound into a coil measuring 1200mm to 1500mm in diameter and weighing over 2 tonnes. Steel tubes measuring 4 to 6 metres are used to create the radiator columns.
Production of the collector
The coils of steel are punched by a press to create the two halves of the collector. The two pieces are then welded together to form double-machined heads. These headers are then sanded and cut in half to create two collectors. These elements are then quality checked before moving onto the next stage.
Production of the section
The collectors and the tubes are now welded together and then ground to make neat joins. At each stage the sections are checked and quality controlled.
The sections are hermetically sealed and then immersed in a bath of water. Each section is then subjected to a pressure of 16 bar to check for leaks.
The radiator sections are now connected to each other using tip-welding. Further testing then checks each radiator for leaks.
After testing, the radiator is suspended ready for the next stage in production.
The finishing touches
First of all the radiators are cleaned to remove any dust and grease. Next a base coat is applied using an electrophoretic technique in order to protect against corrosion and to give a perfect base. The radiator is then placed into a furnace, baking the primer on to the steel at about 180°C.
After sufficient cooling, the radiator is moved along the production line ready for powder coating. Powder coating is much more environmentally friendly than wet painting. Standard white radiators are automatically painted, whereas all other colours and finishes are manually sprayed.
The radiator is then returned to the oven where the powder melts evenly and gives the radiator a perfect finish that is resistant to shock and heat.
Before packing, each radiator is thoroughly quality checked once again and then up to 98% of radiators are packaged and wrapped using a fully automated system.
25 -30 working days
Chrome Towel Bar Included
Guarantee 5 Years

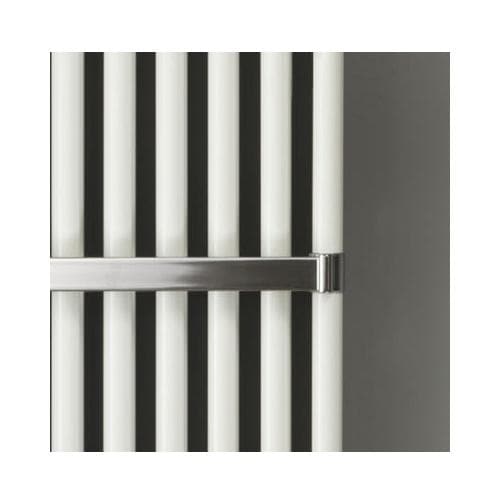

The Zehnder Charleston is the original multi column radiator and whilst the techniques and precision of manufacture have changed, it is still being produced to the original design from the 1930's and so retains its authentic appeal. It is available in a wide variety of sizes to suit your project. The Charleston Bar 3 column is the ideal way to save wall space and add style, warmth and comfort to your room. The Zehnder Charleston Bar is provided with a chrome towel bar for increased practicality.
The Charleston Bar Spa 3column range Heat output @ ΔT=50
1400 - 2656 Watts
4774 - 9057 BTU
Here's how they are made!
This radiator is available in any of the Zehnder Colour System colours – see here - at a cost of the standard white + 25%. Colour swatches can be ordered here and the cost is refundable either when you return the swatch or place an order. Delivery of coloured radiators is normally c.4 weeks. Please contact us for further details.
