The Zehnder Charleston radiator has played a key part in the Company’s success over the past 80 years.

Continuous advances in the quality of production methods and technology has kept the Charleston Multi-column at the forefront of the radiator market.

Take a look behind the scenes to discover how they are made.

High quality, using the latest technology and production methods

This is how the famous Zehnder Charleston Multi-column is made

During the first phase of production of a multi-column radiator, steel strips are wound into a coil measuring 1200mm to 1500mm in diameter and weighing over 2 tonnes. Steel tubes measuring 4 to 6 metres are used to create the radiator columns.

Production of the collector

The coils of steel are punched by a press to create the two halves of the collector. The two pieces are then welded together to form double-machined heads. These headers are then sanded and cut in half to create two collectors. These elements are then quality checked before moving onto the next stage.

Production of the section

The collectors and the tubes are now welded together and then ground to make neat joins. At each stage the sections are checked and quality controlled.

The sections are hermetically sealed and then immersed in a bath of water. Each section is then subjected to a pressure of 16 bar to check for leaks.

Assembly

The radiator sections are now connected to each other using tip-welding. Further testing then checks each radiator for leaks.

After testing, the radiator is suspended ready for the next stage in production.

The finishing touches

First of all the radiators are cleaned to remove any dust and grease. Next a base coat is applied using an electrophoretic technique in order to protect against corrosion and to give a perfect base. The radiator is then placed into a furnace, baking the primer on to the steel at about 180°C.

After sufficient cooling, the radiator is moved along the production line ready for powder coating. Powder coating is much more environmentally friendly than wet painting. Standard white radiators are automatically painted, whereas all other colours and finishes are manually sprayed.

The radiator is then returned to the oven where the powder melts evenly and gives the radiator a perfect finish that is resistant to shock and heat.

Before packing, each radiator is thoroughly quality checked once again and then up to 98% of radiators are packaged and wrapped using a fully automated system.

Zehnder Charleston Bar (Spa) 2 Column

Regular price
£274.88
Sale price
£274.88
Include VAT Delivery Terms, options selected at checkout.

Delivery:
White (302 & 486mm wide models only) 5- 7 working days
Non stock white/colours - 25 -30 working days
Chrome Towel Bar Included
Guarantee 5 Years

SKU: CPV2075-6
White / 742x302 (CPV2075-6) 31753141321828
Radiator Type: Central Heating
Immersion Rating:
Width: 302mm
Height: 742mm
Weight: 7.43kg
Delta 50 Watts: 330
Delta 50 BTU: 1125
Postition: Vertical
White / 892x486 (CPV2090-10) 31753141420132
Radiator Type: Central Heating
Immersion Rating:
Width: 486mm
Height: 892mm
Weight: 13.45kg
Delta 50 Watts: 639
Delta 50 BTU: 2179
Postition: Vertical
White / 1192x486 (CPV2120-10) 31753141518436
Radiator Type: Central Heating
Immersion Rating:
Width: 486mm
Height: 1192mm
Weight: 17.38kg
Delta 50 Watts: 827
Delta 50 BTU: 2820
Postition: Vertical
White / 1492x486 (CPV2150-10) 31753141583972
Radiator Type: Central Heating
Immersion Rating:
Width: 486mm
Height: 1492mm
Weight: 21.32kg
Delta 50 Watts: 1040
Delta 50 BTU: 3546
Postition: Vertical
White / 1792x486 (CPV2180-10) 31753141911652
Radiator Type: Central Heating
Immersion Rating:
Width: 486mm
Height: 1792mm
Weight: 25.25kg
Delta 50 Watts: 1240
Delta 50 BTU: 4228
Postition: Vertical
White / 1492x578 (CPV2150-12) 31753141682276
Radiator Type: Central Heating
Immersion Rating:
Width: 578mm
Height: 1492mm
Weight: 25.31kg
Delta 50 Watts: 1248
Delta 50 BTU: 4256
Postition: Vertical
White / 1492x670 (CPV2150-14) 31753141747812
Radiator Type: Central Heating
Immersion Rating:
Width: 670mm
Height: 1492mm
Weight: 29.49kg
Delta 50 Watts: 1456
Delta 50 BTU: 4965
Postition: Vertical
White / 1492x762 (CPV2150-16) 31753141846116
Radiator Type: Central Heating
Immersion Rating:
Width: 762mm
Height: 1492mm
Weight: 33.48kg
Delta 50 Watts: 1664
Delta 50 BTU: 5674
Postition: Vertical
White / 1792x578 (CPV2180-12) 31753142009956
Radiator Type: Central Heating
Immersion Rating:
Width: 578mm
Height: 1792mm
Weight: 30.03kg
Delta 50 Watts: 1488
Delta 50 BTU: 5074
Postition: Vertical
White / 1792x670 (CPV2180-14) 31753142141028
Radiator Type: Central Heating
Immersion Rating:
Width: 670mm
Height: 1792mm
Weight: 34.99kg
Delta 50 Watts: 1736
Delta 50 BTU: 5920
Postition: Vertical
White / 1792x762 (CPV2180-16) 31753142173796
Radiator Type: Central Heating
Immersion Rating:
Width: 762mm
Height: 1792mm
Weight: 39.77kg
Delta 50 Watts: 1984
Delta 50 BTU: 6765
Postition: Vertical
Custom Colour / 742x302 (CPV2075-6-CF) 27948551307364
Radiator Type: Central Heating
Immersion Rating:
Width: 302mm
Height: 742mm
Weight: 7.43kg
Delta 50 Watts: 330
Delta 50 BTU: 1125
Postition: Vertical
Custom Colour / 892x486 (CPV2090-10-CF) 27948556681316
Radiator Type: Central Heating
Immersion Rating:
Width: 486mm
Height: 892mm
Weight: 13.45kg
Delta 50 Watts: 639
Delta 50 BTU: 2179
Postition: Vertical
Custom Colour / 1192x486 (CPV2120-10-CF) 27948560580708
Radiator Type: Central Heating
Immersion Rating:
Width: 486mm
Height: 1192mm
Weight: 17.38kg
Delta 50 Watts: 827
Delta 50 BTU: 2820
Postition: Vertical
Custom Colour / 1492x486 (CPV2150-10-CF) 27948565168228
Radiator Type: Central Heating
Immersion Rating:
Width: 486mm
Height: 1492mm
Weight: 21.32kg
Delta 50 Watts: 1040
Delta 50 BTU: 3546
Postition: Vertical
Custom Colour / 1792x486 (CPV2180-10-CF) 27948555141220
Radiator Type: Central Heating
Immersion Rating:
Width: 486mm
Height: 1792mm
Weight: 25.25kg
Delta 50 Watts: 1240
Delta 50 BTU: 4228
Postition: Vertical
Custom Colour / 1492x578 (CPV2150-12-CF) 27948588826724
Radiator Type: Central Heating
Immersion Rating:
Width: 578mm
Height: 1492mm
Weight: 25.31kg
Delta 50 Watts: 1248
Delta 50 BTU: 4256
Postition: Vertical
Custom Colour / 1492x670 (CPV2150-14-CF) 27948593152100
Radiator Type: Central Heating
Immersion Rating:
Width: 670mm
Height: 1492mm
Weight: 29.49kg
Delta 50 Watts: 1456
Delta 50 BTU: 4965
Postition: Vertical
Custom Colour / 1492x762 (CPV2150-16-CF) 27948594659428
Radiator Type: Central Heating
Immersion Rating:
Width: 762mm
Height: 1492mm
Weight: 33.48kg
Delta 50 Watts: 1664
Delta 50 BTU: 5674
Postition: Vertical
Custom Colour / 1792x578 (CPV2180-12-CF) 27948598853732
Radiator Type: Central Heating
Immersion Rating:
Width: 578mm
Height: 1792mm
Weight: 30.03kg
Delta 50 Watts: 1488
Delta 50 BTU: 5074
Postition: Vertical
Custom Colour / 1792x670 (CPV2180-14-CF) 27948603211876
Radiator Type: Central Heating
Immersion Rating:
Width: 670mm
Height: 1792mm
Weight: 34.99kg
Delta 50 Watts: 1736
Delta 50 BTU: 5920
Postition: Vertical
Custom Colour / 1792x762 (CPV2180-16-CF) 27948604194916
Radiator Type: Central Heating
Immersion Rating:
Width: 762mm
Height: 1792mm
Weight: 39.77kg
Delta 50 Watts: 1984
Delta 50 BTU: 6765
Postition: Vertical

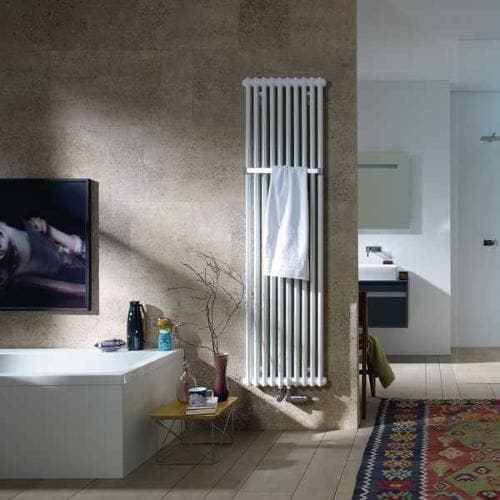

The Zehnder Charleston is the original multi column radiator and whilst the techniques and precision of manufacture have changed, it is still being produced to the original design from the 1930's and so retains its authentic appeal. It is available in a wide variety of sizes to suit your project. The Charleston Bar 2 column is the ideal way to save wall space and add style, warmth and comfort to your room. The Zehnder Charleston Bar is provided with a chrome towel bar for increased practicality.

The Charleston Bar Spa 2 Column range Heat output @ ΔT=50K
330 - 1984 Watts
1125 - 6765 BTU

Here's how they are made!

This radiator is available in any of the Zehnder Colour System colours – see here - at a cost of the standard white + 25%. Colour swatches can be ordered here and the cost is refundable either when you return the swatch or place an order. Delivery of coloured radiators is normally c.4 weeks. Please contact us for further details.

Download PDF Spec
