Zehnder Blitz Super Horizontal Aluminium Living Room Radiator
Zehnder Blitz Super Horizontal Aluminium Living Room Radiator

The Zehnder Charleston radiator has played a key part in the Company’s success over the past 80 years.

Continuous advances in the quality of production methods and technology has kept the Charleston Multi-column at the forefront of the radiator market.

Take a look behind the scenes to discover how they are made.

High quality, using the latest technology and production methods

This is how the famous Zehnder Charleston Multi-column is made

During the first phase of production of a multi-column radiator, steel strips are wound into a coil measuring 1200mm to 1500mm in diameter and weighing over 2 tonnes. Steel tubes measuring 4 to 6 metres are used to create the radiator columns.

Production of the collector

The coils of steel are punched by a press to create the two halves of the collector. The two pieces are then welded together to form double-machined heads. These headers are then sanded and cut in half to create two collectors. These elements are then quality checked before moving onto the next stage.

Production of the section

The collectors and the tubes are now welded together and then ground to make neat joins. At each stage the sections are checked and quality controlled.

The sections are hermetically sealed and then immersed in a bath of water. Each section is then subjected to a pressure of 16 bar to check for leaks.

Assembly

The radiator sections are now connected to each other using tip-welding. Further testing then checks each radiator for leaks.

After testing, the radiator is suspended ready for the next stage in production.

The finishing touches

First of all the radiators are cleaned to remove any dust and grease. Next a base coat is applied using an electrophoretic technique in order to protect against corrosion and to give a perfect base. The radiator is then placed into a furnace, baking the primer on to the steel at about 180°C.

After sufficient cooling, the radiator is moved along the production line ready for powder coating. Powder coating is much more environmentally friendly than wet painting. Standard white radiators are automatically painted, whereas all other colours and finishes are manually sprayed.

The radiator is then returned to the oven where the powder melts evenly and gives the radiator a perfect finish that is resistant to shock and heat.

Before packing, each radiator is thoroughly quality checked once again and then up to 98% of radiators are packaged and wrapped using a fully automated system.

Zehnder Blitz Super Horizontal Aluminium Living Room Radiator

Regular price
£142.01
Sale price
£142.01
Include VAT Delivery Terms, options selected at checkout.

Delivery:
White - 5 -7 working days
Colours - not available
Guarantee 10 Years
Fast Heat output ΔT=50K:
546 - 1980 Watts
1863 - 6754 BTU

SKU: BS350/100-6
395x400mm (BS350/100-6) 28267740004452
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 395mm
Weight: 6.6kg
Delta 50 Watts: 546
Delta 50 BTU: 1863
Postition: Horizontal
395x640mm (BS350/100-8) 28267875729508
Radiator Type: Central Heating
Immersion Rating:
Width: 640mm
Height: 395mm
Weight: 8.8kg
Delta 50 Watts: 728
Delta 50 BTU: 2484
Postition: Horizontal
395x800mm (BS350/100-10) 28267875762276
Radiator Type: Central Heating
Immersion Rating:
Width: 800mm
Height: 395mm
Weight: 11kg
Delta 50 Watts: 910
Delta 50 BTU: 3105
Postition: Horizontal
395x960mm (BS350/100-12) 28267875795044
Radiator Type: Central Heating
Immersion Rating:
Width: 960mm
Height: 395mm
Weight: 13.2kg
Delta 50 Watts: 1092
Delta 50 BTU: 3726
Postition: Horizontal
395x1120mm (BS350/100-14) 28267875827812
Radiator Type: Central Heating
Immersion Rating:
Width: 1120mm
Height: 395mm
Weight: 15.4kg
Delta 50 Watts: 1274
Delta 50 BTU: 4347
Postition: Horizontal
545x480mm (BS500/100-6) 28267875860580
Radiator Type: Central Heating
Immersion Rating:
Width: 480mm
Height: 545mm
Weight: 8.4kg
Delta 50 Watts: 737
Delta 50 BTU: 2516
Postition: Horizontal
545x640mm (BS500/100-8) 28267875893348
Radiator Type: Central Heating
Immersion Rating:
Width: 640mm
Height: 545mm
Weight: 11.2kg
Delta 50 Watts: 983
Delta 50 BTU: 3355
Postition: Horizontal
545x800mm (BS500/100-10) 28267875926116
Radiator Type: Central Heating
Immersion Rating:
Width: 800mm
Height: 545mm
Weight: 14kg
Delta 50 Watts: 1229
Delta 50 BTU: 4193
Postition: Horizontal
545x960mm (BS500/100-12) 28267875958884
Radiator Type: Central Heating
Immersion Rating:
Width: 960mm
Height: 545mm
Weight: 16.8kg
Delta 50 Watts: 1475
Delta 50 BTU: 5032
Postition: Horizontal
545x1120mm (BS500/100-14) 28267875991652
Radiator Type: Central Heating
Immersion Rating:
Width: 1120mm
Height: 545mm
Weight: 19.6kg
Delta 50 Watts: 1721
Delta 50 BTU: 5871
Postition: Horizontal
645x480mm (BS600/100-6) 28267876024420
Radiator Type: Central Heating
Immersion Rating:
Width: 480mm
Height: 645mm
Weight: 9.6kg
Delta 50 Watts: 848
Delta 50 BTU: 2895
Postition: Horizontal
645x640mm (BS600/100-8) 28267876057188
Radiator Type: Central Heating
Immersion Rating:
Width: 640mm
Height: 645mm
Weight: 12.8kg
Delta 50 Watts: 1131
Delta 50 BTU: 3860
Postition: Horizontal
645x800mm (BS600/100-10) 28267876089956
Radiator Type: Central Heating
Immersion Rating:
Width: 800mm
Height: 645mm
Weight: 16kg
Delta 50 Watts: 1414
Delta 50 BTU: 4824
Postition: Horizontal
645x960mm (BS600/100-12) 28267876122724
Radiator Type: Central Heating
Immersion Rating:
Width: 960mm
Height: 645mm
Weight: 19.2kg
Delta 50 Watts: 1697
Delta 50 BTU: 5789
Postition: Horizontal
645x1120mm (BS600/100-14) 28267876155492
Radiator Type: Central Heating
Immersion Rating:
Width: 1120mm
Height: 645mm
Weight: 22.4kg
Delta 50 Watts: 1980
Delta 50 BTU: 6754
Postition: Horizontal

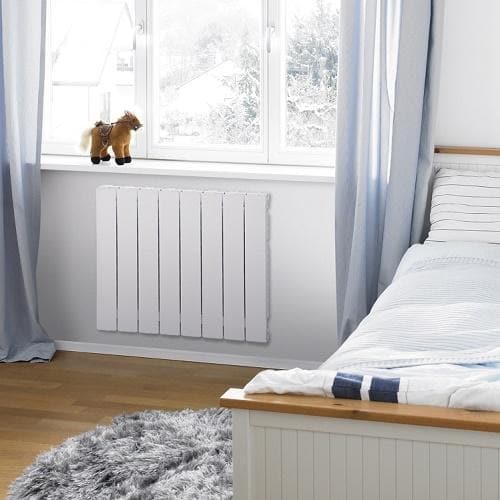

The Zehnder Blitz Super Horizontal Aluminium radiator gives a fast response and comfortable heat with high thermal efficiency. It is energy saving and easy to handle as well as being resistant to corrosion.  The Blitz Super also has the ability to add or remove sections according to requirements, simply purchase 2 of each of the joining nipples,  joining nipple gaskets and the right length assembly tools for every two radiators you wish to join (the joining tools must be longer than the smallest radiator you wish to join).  The Blitz Super is a modern radiator in every sense. 10 year warranty.  Download PDF Spec
