The Zehnder Charleston radiator has played a key part in the Company’s success over the past 80 years.

Continuous advances in the quality of production methods and technology has kept the Charleston Multi-column at the forefront of the radiator market.

Take a look behind the scenes to discover how they are made.

High quality, using the latest technology and production methods

This is how the famous Zehnder Charleston Multi-column is made

During the first phase of production of a multi-column radiator, steel strips are wound into a coil measuring 1200mm to 1500mm in diameter and weighing over 2 tonnes. Steel tubes measuring 4 to 6 metres are used to create the radiator columns.

Production of the collector

The coils of steel are punched by a press to create the two halves of the collector. The two pieces are then welded together to form double-machined heads. These headers are then sanded and cut in half to create two collectors. These elements are then quality checked before moving onto the next stage.

Production of the section

The collectors and the tubes are now welded together and then ground to make neat joins. At each stage the sections are checked and quality controlled.

The sections are hermetically sealed and then immersed in a bath of water. Each section is then subjected to a pressure of 16 bar to check for leaks.

Assembly

The radiator sections are now connected to each other using tip-welding. Further testing then checks each radiator for leaks.

After testing, the radiator is suspended ready for the next stage in production.

The finishing touches

First of all the radiators are cleaned to remove any dust and grease. Next a base coat is applied using an electrophoretic technique in order to protect against corrosion and to give a perfect base. The radiator is then placed into a furnace, baking the primer on to the steel at about 180°C.

After sufficient cooling, the radiator is moved along the production line ready for powder coating. Powder coating is much more environmentally friendly than wet painting. Standard white radiators are automatically painted, whereas all other colours and finishes are manually sprayed.

The radiator is then returned to the oven where the powder melts evenly and gives the radiator a perfect finish that is resistant to shock and heat.

Before packing, each radiator is thoroughly quality checked once again and then up to 98% of radiators are packaged and wrapped using a fully automated system.

Zehnder Ax Spa Cloakroom

Regular price
£165.37
Sale price
£165.37
Include VAT Delivery Terms, options selected at checkout.

Delivery:
White (except ZA-060-100/060-120)/Volcanic, Beige Quartz & Brown Quartz (ZA-048-040/060-080/060-090 sizes only)/Chrome (ZA-080-050/120-050/120/060/150-040/150-050/180-050 sizes only)- 5 -7 working days

Non Stock Sizes/Colours: 25- 30 working days
Guarantee 5 Years
Heat output @
 ΔT=50K:
230- 1485 Watts

785 - 5067 BTU

SKU: ZA-048-040
White / 484x400 (ZA-048-040) 31753145483364
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 484mm
Weight: 4.5kg
Delta 50 Watts: 230
Delta 50 BTU: 785
Postition: Vertical
Volcanic / 484x400 (ZA-048-040-0336) 31753145516132
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 484mm
Weight: 4.5kg
Delta 50 Watts: 230
Delta 50 BTU: 785
Postition: Vertical
Custom Colour / 484x400 (ZA-048-040-CF) 27935046140004
Radiator Type: Central Heating
Immersion Rating:
Width: 400mm
Height: 484mm
Weight: 4.5kg
Delta 50 Watts: 230
Delta 50 BTU: 785
Postition: Vertical

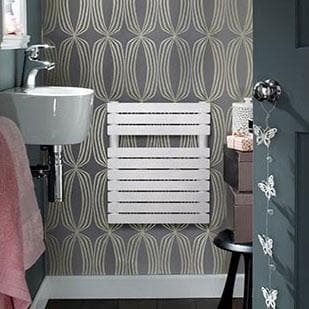

The Zehnder Ax Spa (formerly the Altai Spa) is perfectly proportioned for small cloakrooms. It is available in white, volcanic, beige and brown quartz finishes and measures 484mm high x 400mm wide.

This radiator is available in any of the Zehnder Colour System colours – see here - at a cost of the standard white + 25%. Colour swatches can be ordered here and the cost is refundable either when you return the swatch or place an order. Delivery of coloured radiators is normally c.4 weeks. Please contact us for further details.
