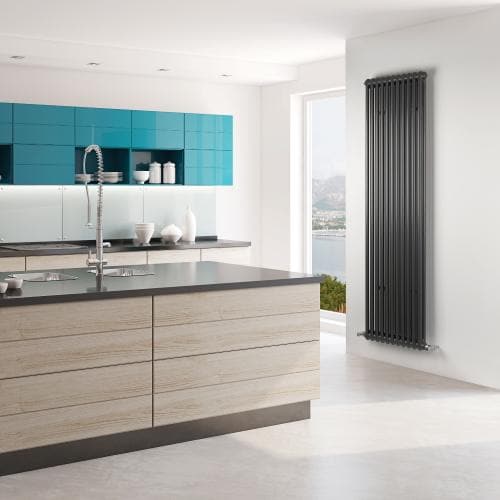

MHS 3 column Vertical 1800 High in Anthracite
MHS 3 column Vertical 1800 High in Anthracite

The Zehnder Charleston radiator has played a key part in the Company’s success over the past 80 years.

Continuous advances in the quality of production methods and technology has kept the Charleston Multi-column at the forefront of the radiator market.

Take a look behind the scenes to discover how they are made.

High quality, using the latest technology and production methods

This is how the famous Zehnder Charleston Multi-column is made

During the first phase of production of a multi-column radiator, steel strips are wound into a coil measuring 1200mm to 1500mm in diameter and weighing over 2 tonnes. Steel tubes measuring 4 to 6 metres are used to create the radiator columns.

Production of the collector

The coils of steel are punched by a press to create the two halves of the collector. The two pieces are then welded together to form double-machined heads. These headers are then sanded and cut in half to create two collectors. These elements are then quality checked before moving onto the next stage.

Production of the section

The collectors and the tubes are now welded together and then ground to make neat joins. At each stage the sections are checked and quality controlled.

The sections are hermetically sealed and then immersed in a bath of water. Each section is then subjected to a pressure of 16 bar to check for leaks.

Assembly

The radiator sections are now connected to each other using tip-welding. Further testing then checks each radiator for leaks.

After testing, the radiator is suspended ready for the next stage in production.

The finishing touches

First of all the radiators are cleaned to remove any dust and grease. Next a base coat is applied using an electrophoretic technique in order to protect against corrosion and to give a perfect base. The radiator is then placed into a furnace, baking the primer on to the steel at about 180°C.

After sufficient cooling, the radiator is moved along the production line ready for powder coating. Powder coating is much more environmentally friendly than wet painting. Standard white radiators are automatically painted, whereas all other colours and finishes are manually sprayed.

The radiator is then returned to the oven where the powder melts evenly and gives the radiator a perfect finish that is resistant to shock and heat.

Before packing, each radiator is thoroughly quality checked once again and then up to 98% of radiators are packaged and wrapped using a fully automated system.

MHS 3 column Vertical 1800 High in Anthracite

Regular price
£161.99
Sale price
£161.99
Include VAT Delivery Terms, options selected at checkout.

Delivery: Anthracite - 3 - 5 working days Material: Steel Guarantee 5 Years Heat output @ ?T=50K 541 - 3604 Watts 1846 - 12297 BTU
SKU: MSWA-B-3-1800-03
1800x162 (MSWA-B-3-1800-03) 27657147875428
Radiator Type: Central Heating
Immersion Rating:
Width: 162mm
Height: 1800mm
Weight: 11.73
Delta 50 Watts:
Delta 50 BTU:
Postition: Vertical
1800x208 (MSWA-B-3-1800-04) 27657147908196
Radiator Type: Central Heating
Immersion Rating:
Width: 208mm
Height: 1800mm
Weight: 15.64
Delta 50 Watts: 261
Delta 50 BTU: 891
Postition: Vertical
1800x254 (MSWA-B-3-1800-05) 27657147940964
Radiator Type: Central Heating
Immersion Rating:
Width: 254mm
Height: 1800mm
Weight: 19.55
Delta 50 Watts: 326
Delta 50 BTU:
Postition: Vertical
1800x1800 (MSWA-B-3-1800-06) 27657147973732
Radiator Type: Central Heating
Immersion Rating:
Width: 1800mm
Height: 1800mm
Weight: 23.46
Delta 50 Watts: 391
Delta 50 BTU: 1334
Postition: Vertical
1800x346 (MSWA-B-3-1800-07) 27657148006500
Radiator Type: Central Heating
Immersion Rating:
Width: 346mm
Height: 1800mm
Weight: 27.37
Delta 50 Watts:
Delta 50 BTU:
Postition: Vertical
1800x392 (MSWA-B-3-1800-08) 27657148039268
Radiator Type: Central Heating
Immersion Rating:
Width: 392mm
Height: 1800mm
Weight: 31.28
Delta 50 Watts:
Delta 50 BTU:
Postition: Vertical
1800x438 (MSWA-B-3-1800-09) 27657148072036
Radiator Type: Central Heating
Immersion Rating:
Width: 438mm
Height: 1800mm
Weight: 35.19
Delta 50 Watts:
Delta 50 BTU:
Postition: Vertical
1800x484 (MSWA-B-3-1800-10) 27657148104804
Radiator Type: Central Heating
Immersion Rating:
Width: 484mm
Height: 1800mm
Weight: 39.1
Delta 50 Watts: 652
Delta 50 BTU: 2225
Postition: Vertical
1800x530 (MSWA-B-3-1800-11) 27657148137572
Radiator Type: Central Heating
Immersion Rating:
Width: 530mm
Height: 1800mm
Weight: 43.01
Delta 50 Watts: 717
Delta 50 BTU: 2446
Postition: Vertical
1800x576 (MSWA-B-3-1800-12) 27657148170340
Radiator Type: Central Heating
Immersion Rating:
Width: 576mm
Height: 1800mm
Weight: 46.92
Delta 50 Watts: 782
Delta 50 BTU: 2668
Postition: Vertical
1800x622 (MSWA-B-3-1800-13) 27657148203108
Radiator Type: Central Heating
Immersion Rating:
Width: 622mm
Height: 1800mm
Weight: 50.83
Delta 50 Watts: 848
Delta 50 BTU:
Postition: Vertical
1800x668 (MSWA-B-3-1800-14) 27657148235876
Radiator Type: Central Heating
Immersion Rating:
Width: 668mm
Height: 1800mm
Weight: 54.74
Delta 50 Watts:
Delta 50 BTU:
Postition: Vertical
1800x714 (MSWA-B-3-1800-15) 27657148268644
Radiator Type: Central Heating
Immersion Rating:
Width: 714mm
Height: 1800mm
Weight: 58.65
Delta 50 Watts: 978
Delta 50 BTU: 3337
Postition: Vertical
1800x760 (MSWA-B-3-1800-16) 27657148301412
Radiator Type: Central Heating
Immersion Rating:
Width: 760mm
Height: 1800mm
Weight: 62.56
Delta 50 Watts:
Delta 50 BTU:
Postition: Vertical
1800x806 (MSWA-B-3-1800-17) 27657148334180
Radiator Type: Central Heating
Immersion Rating:
Width: 806mm
Height: 1800mm
Weight: 66.47
Delta 50 Watts:
Delta 50 BTU:
Postition: Vertical
1800x852 (MSWA-B-3-1800-18) 27657148366948
Radiator Type: Central Heating
Immersion Rating:
Width: 852mm
Height: 1800mm
Weight: 70.38
Delta 50 Watts:
Delta 50 BTU:
Postition: Vertical
1800x898 (MSWA-B-3-1800-19) 27657148399716
Radiator Type: Central Heating
Immersion Rating:
Width: 898mm
Height: 1800mm
Weight: 74.29
Delta 50 Watts:
Delta 50 BTU:
Postition: Vertical
1800x944 (MSWA-B-3-1800-20) 27657148432484
Radiator Type: Central Heating
Immersion Rating:
Width: 944mm
Height: 1800mm
Weight: 78.2
Delta 50 Watts:
Delta 50 BTU:
Postition: Vertical

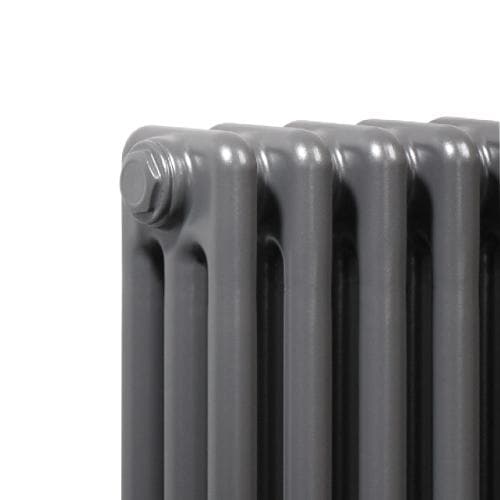

The Multisec’s clean lines and classic design combine to add warmth and elegance to any room. It is available in a range of heights and widths and in 2 – 6 column formats.
